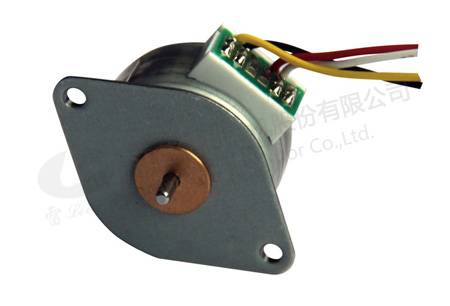

25BY412L Stepping Motor

Product Description:

Automotive、 Passenger vehicles、 Car lamp、 Industrial Solutions、 Valve Market、 Electronic expansion valve、Electronic actuator


Product Detail

Product Detail

 Performance Parameter

model stepping angle drive method circuit voltage current resistance insulation resistance insulation&voltage resistance insulation level
25BY412L-145 48(7.5°/Step) 2-2 PHASE UNIPOLAR CONST.VOLT 12[V] 30[Ω] 100M[Ω]MIN AC 500[V]1[min] CLASS E
25BY412L-102 48(7.5°/Step) 2-2 PHASE BIPOLAR CONST.VOLT 5[V] 500mA 5[Ω] 100M[Ω]MIN AC 500[V]1[min] CLASS E

  Dimension

 Performance Curves
