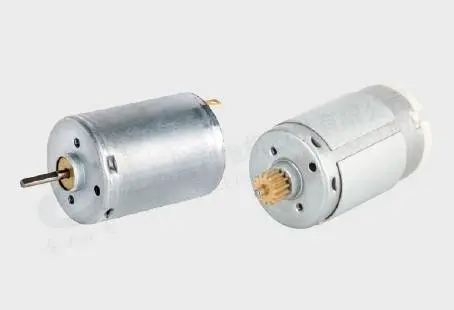

RS-380(385)SA DC Brush Motor

Model:RS-380(385)SA
A brushed DC motor is a DC motor, assembling main magnetic pole and brush on the stator and assembling the winding coil and commutator assembled on the rotor. The electric energy from the dc power supply enters the armature winding through the brush and commutator, generating the armature current. The magnetic field generated by the armature current interacts with the main magnetic field to generate the electromagnetic torque, making the motor rotate to drive the load.



Application：
Home appliances: hair dryer
Industry: vending machines
Availability:
Quantity:
Inquiry Batch Inquiry Request

PDF Export
Product Description

We are committed to providing quality products to our customers and accept a minimum order of 2000 units.

For retail business please consult your local distributor.


Product Detail



Performance parameter


model vol no-load max stall
working range
(V)		 rated
(V)		 speed
(r/min)		 current
(A)		 speed
(r/min)		 current
(A)		 torque
(mN.m)		 torque
(g.cm)		 output
(W)		 torque
(mN.m)		 torque
(g.cm)		 current
(A)
RS-385SA 3-12 6 9550 0.52 7472 1.87 11.10 113.22 8.6 51.3 523.26 10.44


Dimension


RS-380(385)SA DC Brush Motor


 Performance Curves


RS-380(385)SA DC Brush Motor2
