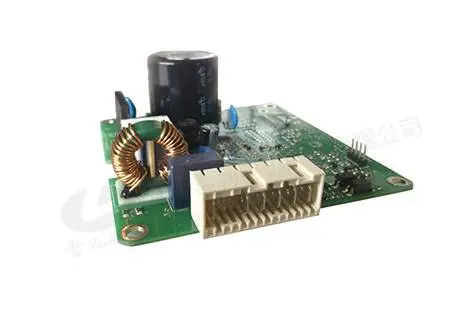

variable frequency drives (VFDs)

variable frequency drives (VFDs)
Availability:
Quantity:

PDF Export

Product Description

We are committed to providing quality products to our customers and accept a minimum order of 2000 units.

For retail business please consult your local distributor.


Product Detail



Performance


Name BLDC Variable Frequency Drives (VFDs) BLDC Variable Frequency Drives (VFDs) AC Induction Motor (VFDs)
Application BLDC Motor Control For Ripple Washing Machine BLDC Motor Control For Cylinder Washing Machine AC Induction Motor VFDs
Input Current AC220V±20% 50/60Hz
Motor Adaptive BLDC Motor With 2 or 3pcs Hall Sensors inside BLDC Motors With Or Without Hall Sensor AC Induction Motors
Max. Input Current 6A (RMS) 6A (RMS) 5A (RMS)
Max. Output Power 1000W 1000W 900W
Drive Method 180° Sine Wave Drive, Space Vector PWM 180° Sine Wave Drive, Direct Torque Control (DTC) 180° Sine Wave Drive, Space Vector PWM
Position Detection Sensors Available No Sensor Optional Sensors
Rotation Accuracy Control 10RPM 10RPM 10RPM
Automatic Weighing Resolution 0.2kg Resolution 0.4kg
Dynamic Balancing Detection Resolution 0.1kg
Electronic Brake Negative Moment Quick Braking Technology
Circuit Protection Automatic Protection For Overvoltage, Over-Current, Over-Temperature, Logical Interlock
Power Consumption Idle Power Consumption < 5W
Safety Criteria EN60335, EN60730
EMC GB 4343.1-2003 GB 4343.1-2003 GB 4343.1-2003
GB 17625.1-2003 GB 17625.1-2003 GB 17625.1-2003
GB 17625.2-2003 GB 17625.2-2003 GB 17625.2-2003
GB/T 17625.2-2006 GB/T 17625.2-2006 GB/T 17625.2-2006
GB/T 17625.3-2006 GB/T 17625.3-2006 GB/T 17625.3-2006
GB/T 17625.4-2008 GB/T 17625.4-2008 GB/T 17625.4-2008
GB/T 17625.5-2008 GB/T 17625.5-2008 GB/T 17625.5-2008
GB/T 17625.11-2008 GB/T 17625.11-2008 GB/T 17625.11-2008
GB/T 17625.28-2008 GB/T 17625.28-2008 GB/T 17625.28-2008


Technical Characteristics
1. Motor drive control algorithm with independent intellectual property rights
2. Skilled circuit modules eesign, all circuit modules through simulation, test, debugging for best performance and low
cost
3. Abundant professional design experience for washing machince turn-key electric control solutions with systematic
definition and optimization abilities, can control precisely and adjust the drive system in the market, moreover, EMC
solutions are also available
