The electrification of transportation, robotics, and industrial systems has accelerated the development of compact, high-efficiency electric motors. Among the most innovative designs is the axial flux motor (AFM), known for its flat geometry, high torque density, and space-saving benefits compared to traditional radial flux machines.

As industries search for ways to maximize efficiency, two integration pathways have gained prominence: combining axial flux motors with gearboxes for torque multiplication, and deploying them in direct-drive systems where mechanical transmission is eliminated.

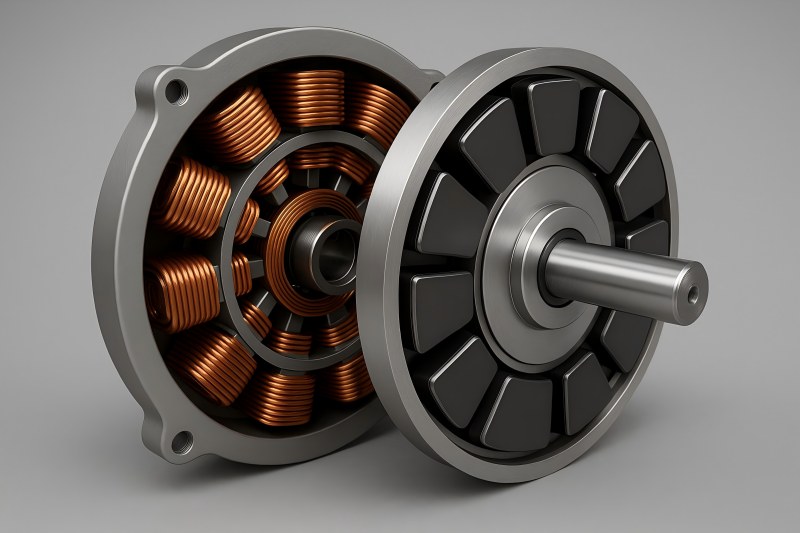

Understanding Axial Flux Motors

Geometry and Operation

Unlike radial flux motors, where the magnetic flux flows radially through the stator and rotor, axial flux motors have magnetic flux traveling parallel to the shaft. This flat, pancake-like design yields:

• High torque density – more torque per unit volume.
• Compact axial length – ideal for space-constrained applications.
• Short end windings – improved copper utilization and reduced resistive losses.

Key Applications

Axial flux motors are increasingly applied in:

• Electric vehicles (EVs and e-bikes).
• Aerospace propulsion systems.
• Industrial robotics.
• Renewable energy generators (e.g., wind turbines).

Integration Pathways: Gearbox vs. Direct-Drive

Two main methods exist for integrating axial flux motors into mechanical systems:

• With Gearboxes – AFMs provide speed, while the gearbox multiplies torque and adapts output to the load.
• Direct-Drive Systems – AFMs directly couple to the load, eliminating intermediate gears.

Every method offers unique benefits and corresponding compromises.

Axial Flux Motors with Gearboxes

Why Pair with Gearboxes?

Despite high torque density, axial flux motors often operate at higher speeds for efficiency. Gearboxes allow engineers to tailor torque and speed to the application.

Common gearbox pairings include:

• Planetary gearboxes – compact, high load capacity.
• Harmonic drives – precision robotics.
• Cycloidal gearboxes – high-shock load resistance.

Benefits of AFM-Gearbox Integration

• Torque Amplification – Enables smaller AFMs to drive heavy loads.
• Flexibility – Gear ratios provide versatility across varying duty cycles.
• Compact Powertrains – Flat AFMs plus planetary gearboxes reduce system footprint.

Challenges

• Added complexity – More moving parts increase potential failure points.
• Efficiency losses – Gear meshing introduces friction and heat.
• Maintenance requirements – Lubrication, wear monitoring, and servicing.

Case Example: Electric Vehicles

In high-performance EVs, AFMs paired with single- or two-stage gearboxes provide the balance between compact design and road torque demands. Unlike radial flux motors, AFMs reduce overall drivetrain length, freeing space for batteries or passenger comfort.

Axial Flux Direct-Drive Systems

What Is Direct-Drive?

Direct-drive integration eliminates the gearbox. The motor shaft connects directly to the load, relying on the AFM’s intrinsic torque density to deliver required performance.

Benefits

• High Efficiency – No mechanical transmission losses.
• Reliability – Fewer moving parts reduce wear and failure points.
• Precision Control – Ideal for robotics and CNC systems requiring smooth motion.
• Compact Assembly – Reduces overall drivetrain size and weight.

Limitations

• Size and Weight – To produce enough torque without gearing, larger AFMs may be needed.
• Cost – High-performance AFMs with strong permanent magnets can be expensive.
• Thermal Management – Direct-drive AFMs generate significant heat under high torque.

Case Example: Wind Turbines

Direct-drive axial flux generators boost efficiency, cut maintenance, and enhance reliability by eliminating gearboxes.

Engineering Considerations in Integration

Torque-Speed Matching

• With Gearboxes: Designers can select smaller AFMs running at high speed, with gear reduction providing torque.
• Direct-Drive: The AFM must be dimensioned to produce full required torque at low speed.

Cooling and Thermal Management

AFMs typically use liquid cooling or forced air systems due to their high torque density.

In direct-drive systems, cooling becomes more critical because no gearbox dissipates part of the heat.

Efficiency Trade-Offs

• AFM + Gearbox: Motor efficiency (≈95%) × gearbox efficiency (≈90–95%) = combined efficiency ~85–90%.
• Direct-Drive AFM: Efficiency closer to 93–96%, but requires larger motor footprint.

Material Selection

• Magnets: High-grade NdFeB permanent magnets increase torque density.
• Laminations: Thin, high-permeability electrical steel reduces eddy current losses.
• Housing: Lightweight alloys or composites improve system compactness.

Cost Factors

• Direct-drive: Higher initial motor cost, lower lifetime maintenance.
• Gearbox integration: Lower motor cost, but higher lifecycle maintenance costs.

Comparative Analysis

Factor	AFM + Gearbox	Direct-Drive AFM
Efficiency	85–90% (due to gear losses)	93–96% (no gear losses)
Torque Density	High (gears amplify torque)	Very high (large AFM required)
Size/Weight	More compact overall	Larger motor, no gearbox bulk
Cost	Lower upfront, higher maintenance	Higher upfront, lower maintenance
Reliability	Moderate (gear wear, lubrication)	High (fewer moving parts)
Applications	EVs, robotics, industrial machinery	Wind turbines, aerospace, precision drives

Applications Across Industries

Electric Mobility

AFM + Gearbox: Suited for passenger EVs, motorcycles, and scooters needing dynamic torque curves.

Direct-Drive AFM: Popular in e-bikes and in-wheel EV motors for compact integration.

Aerospace

Lightweight direct-drive AFMs in propulsion fans or actuator systems, where reliability outweighs cost.

Robotics

Harmonic-drive gearboxes plus AFMs enable precise manipulation with compact actuators.

Renewable Energy

Direct-drive axial flux generators in wind turbines reduce maintenance needs compared to gear-driven systems.

Future Trends in Integration

• Advanced Cooling Techniques – Immersion cooling and micro-channel liquid cooling for high-torque AFMs.
• Additive Manufacturing – Custom laminated stacks and rotor designs to optimize direct-drive torque.
• Smart Gearboxes – Integration with sensors for predictive maintenance in AFM-driven systems.
• Rare-Earth-Free Designs –Using ferrite or composites to lessen dependence on critical materials.
• Hybrid Integration – Semi-direct systems with ultra-low-ratio gearboxes (≤2:1) to balance torque and efficiency.

Axial flux motors represent a transformative leap in electric motor technology, offering high torque density and compact form factors that complement both gearbox integration and direct-drive systems. The choice between these pathways depends on the specific application: gearboxes provide flexibility and torque multiplication for mobility and robotics, while direct-drive systems maximize efficiency and reliability in renewable energy and aerospace.

As manufacturing techniques, magnet materials, and thermal management technologies advance, the line between gearbox-assisted and direct-drive axial flux applications will blur, enabling even more efficient, compact, and durable electromechanical systems for the industries of tomorrow.
