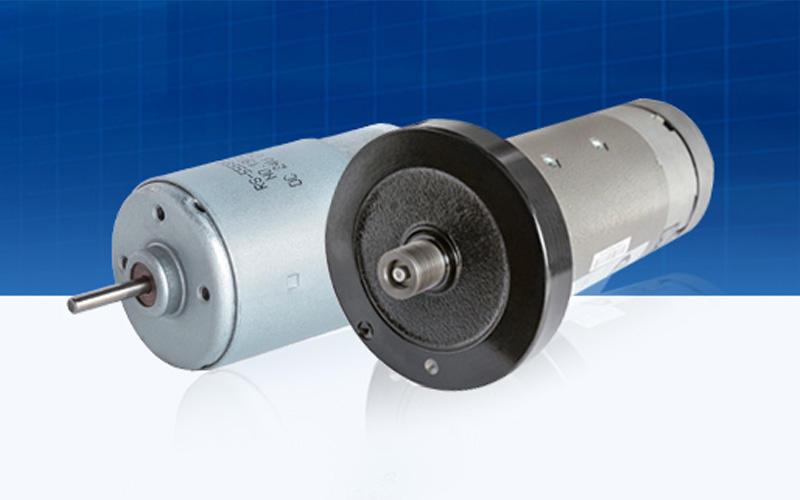

Brushed DC Motor Manufacturer
We specialize in the professional manufacturing of brushed DC motors, offering reliable performance, stable torque, and long service life.
We support customized services to meet your specific design, size, and control requirements for efficient motion solutions.
- 7.2V-240V Operation
- 0.4-2000Nm Torque
- Insulation Class: N
By Structural Design

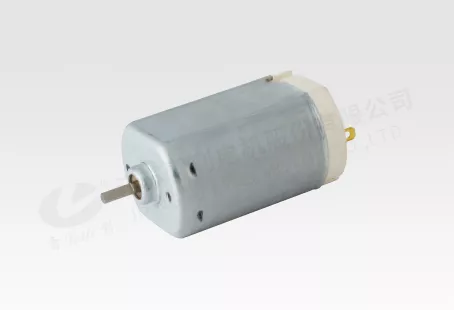

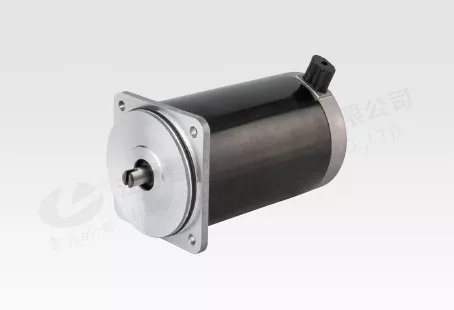

Brushed Permanent Magnet DC Motor
- Utilizes permanent magnets in the stator, offering reliable performance and higher efficiency for general-purpose applications.
- Voltage: 24V-130V
- Current: 6.3-30A
- Load Torque: 0.4-8.2N·m
Series Excitation Motor
- Also called a DC Series Motor, it uses series-wound coils with field and armature windings connected in series sharing current.
- Rated Voltage: 70V-230V
- No Load Speed: 115-32000r/min
- No Load Current: 0.35-7A

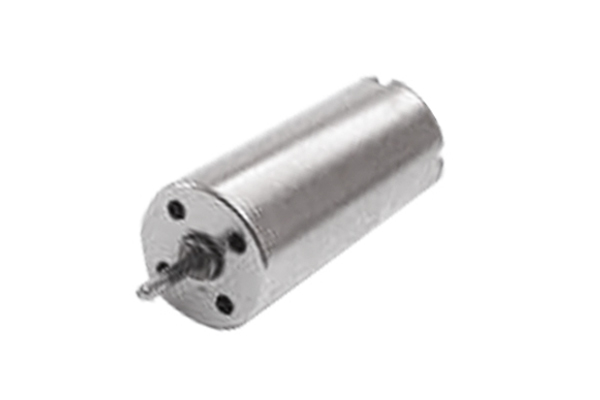

Coreless Brush DC Motor
- Features a rotor without an iron core, providing faster response, higher speeds, and lower inertia for precision and lightweight applications.
- Voltage: 3V to 24V
- Rated Current: 50mA to 5A
- Load Torque: 0.1 Nm to 1.5 Nm
By Combination

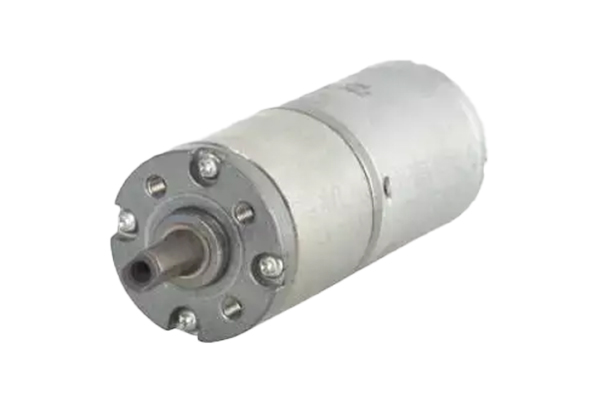

With Gear
- Brushed DC gear motor decreases the speed while increasing the torque.
- Provides higher torque output for heavy-load applications.
- Ensures accurate control of movement and positioning.
With Encoder
- Brushed DC motor with encoder enables precise speed control.
- Used in feedback systems to adjust motor operation based on sensor data.
- Enhances motor performance to help cut down on energy use.
With Controller
- Brushed DC Motor with controller enables H-bridge rotation.
- Alters motor speed by means of voltage regulation or pulse width modulation (PWM).
- Incorporates functions including thermal protection, overvoltage, and overcurrent.
With Cooling System
- Prevents the motor from overheating during continuous or high-load operation.
- Common cooling techniques for heat absorption and dissipation.
- Reduces wear and tear caused by excessive heat, ensuring the motor lasts longer.
By Control Method
Voltage Control
- Adjusting the input voltage allows control over the speed of a brushed DC motor.
- Basic uses in which the applied voltage determines the motor speed.
PWM Brushed DC Motor
- PWM brushed DC motor adjusts speed and torque using pulse signals.
- Efficient, precise control of speed and torque with minimal heat generation.
Bridge Control
- An H-Bridge reverses current direction, enabling bidirectional control of motor rotation.
- Common in applications like robotics and vehicles, where changing motor direction is necessary.
Feedback Control
- A feedback system with an encoder monitors motor speed, position, and performance.
- Servo systems, CNC machines, and robotics are examples of precision applications.
Featured Products

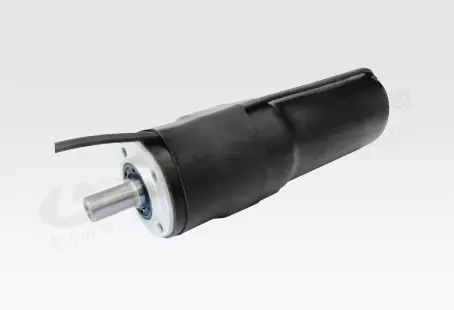

53ZYJ50 DC Brushed Gear Motor
- Rated Voltage: DC 24V
- No-Load Speed:33-90r/min
- No-Load Current: 0.4-0.75A

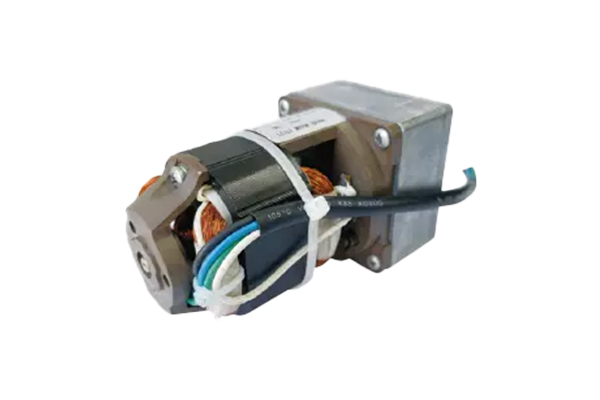

55UJ80 Series Excitation Motor
- No-Load Speed: 360±36r/min
- Current: ＜5A
- Load Torque: 10.7N.m
Applications
Electric Cars
- Used in older EV models for traction motors.
- Common in power windows, wipers, and seat adjusters.
Power Tools
- Found in corded drills, screwdrivers, grinders, and saws.
- Brushed motors offer high starting torque, making them perfect for demanding mechanical loads.
Office Equipment
- Used in printers, fax machines, scanners, and copiers.
- Enables precise paper feeding and movement mechanisms.
Automotive Systems
- Powers fans, blowers, pumps, and actuators.
- Widely used in central locking, mirror adjusters, and headlight alignment.
Toys and Hobby Electronics
- Found in remote-control cars, robots, drones, and electric toy trains.
- Cheap, lightweight, and easy to replace.
Portable Medical Devices
- Used in infusion pumps, portable suction devices, and mobility aids.
- Offers quiet operation and smooth speed control.
