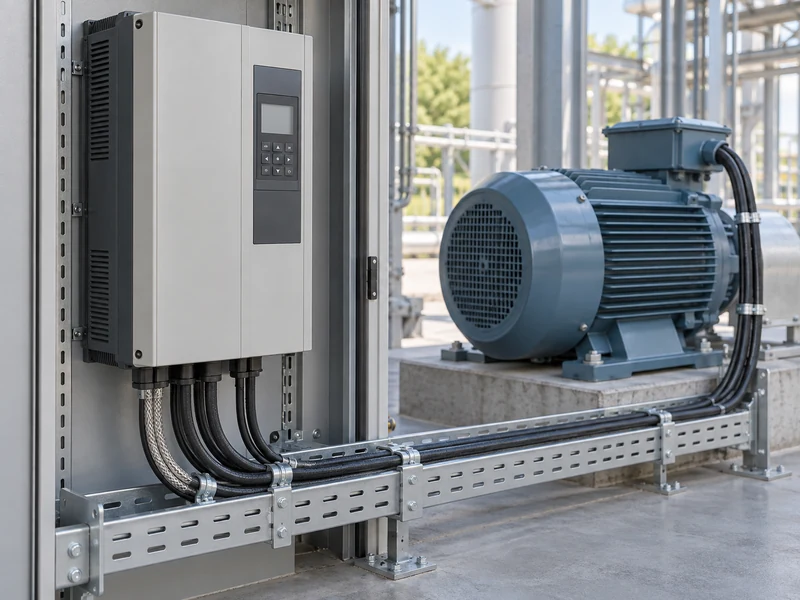

A permanent magnet synchronous motor and its inverter should be matched through a documented exchange of electrical parameters, operating limits, feedback details, and commissioning responsibilities. Matching only the power labels leaves important questions unanswered, including whether the drive supports the motor type and whether it can supply the required current across the intended speed range. The handover should end with an approved configuration for a specific motor, drive, and software version.

Why Is Equal Rated Power Not Enough?

Rated power describes mechanical output at a stated operating point; it does not fully describe the electrical demands placed on an inverter. Motors with the same power can differ in rated current, speed, inductance, back electromotive force, and overload requirements. The drive must support the relevant combination rather than simply carry a similar kilowatt label.

Use the Leili permanent magnet synchronous motor product family to identify the candidate motor, then obtain the exact model data needed by the selected inverter. Family-level descriptions are insufficient when the parameter set varies between models. Record the complete motor designation, connection arrangement, and revision of the technical information supplied.

The same discipline applies to the inverter. Its usable current depends on the manufacturer’s stated operating conditions, which may include ambient temperature, switching frequency, enclosure arrangement, and overload mode. Confirm those conditions before deciding that the nameplate current provides adequate capacity.

Which Electrical Parameters Need Unambiguous Definitions?

Provide every parameter required by the drive’s approved motor setup procedure, with units and measurement conventions. Resistance and inductance values can be expressed in different ways, so a number without a definition can be more dangerous to the schedule than a clearly identified missing value. The motor and inverter suppliers should agree on the format before commissioning begins.

Back-EMF information needs particular care. The document should state the speed basis, whether voltage is phase or line-to-line, and whether the value represents an RMS or peak quantity. A technician should not have to infer these conventions from a spreadsheet column heading.

For a drive that uses separate direct-axis and quadrature-axis parameters, confirm which values the motor supplier can provide and under what test conditions. Do not substitute an unrelated catalogue inductance because the field accepts a number. If identification is required, specify who will perform it and whether the approved procedure requires shaft movement.

How Do Current and Voltage Limits Affect the Match?

Current capability and voltage availability constrain different parts of the operating envelope. A system may have enough current for the desired torque at low speed yet reach its voltage limit as speed rises. Treat the full torque-speed requirement as the acceptance target rather than checking only one operating point.

MIT course notes on permanent magnet machines explain how current and voltage constraints shape machine operation. For an actual installation, the relevant limits must come from the selected motor and converter documentation. Field-weakening capability, where applicable, is a system-specific engineering question rather than an automatic consequence of using a PMSM.

Supply variation should appear in the enquiry. If the required operating point depends on nominal voltage being available at all times, the proposed arrangement may have insufficient margin under the site’s actual supply conditions. Ask the drive supplier to confirm the agreed envelope at the documented supply range.

What Must Be Agreed About Feedback and Starting?

The feedback arrangement must suit the process requirement and the inverter’s supported control implementation. Specify whether the machine must start against load, hold a particular operating condition near zero speed, or recover while the shaft is already turning. These requirements can affect whether the proposed sensorless or feedback-based arrangement is appropriate.

When a feedback device is used, agree on electrical interface, connector allocation, cable requirements, direction convention, and the method for establishing the required motor relationship. Compatibility includes the actual hardware and software combination, not merely the fact that both devices use the word encoder. Keep the approved wiring document with the final parameter backup.

For broader context, Leili’s article on FOC and DTC for PMSMs introduces control approaches. The procurement decision should nevertheless use measurable process requirements such as ramp time, allowable speed deviation, and permitted recovery behavior. A preferred algorithm name cannot replace those acceptance criteria.

Which Protection Signals Belong in the Handover?

The handover should identify each protective input, its physical source, and the action expected when it changes state. Temperature information, for example, is useful only when the sensor type, wiring, scaling, and response are correctly configured. A displayed value should not be assumed accurate simply because it appears plausible.

Distinguish warning, controlled shutdown, and fault behavior. Each serves a different operational purpose, and the correct response depends on the machine and process risk assessment. The motor supplier’s permissible limits and the system integrator’s machine-level requirements must be reconciled rather than entered independently.

Thermal protection also needs a consistent basis when operation differs from the rated condition. Review low-speed duty, repeated overloads, cooling availability, and restart timing with the supplier. Leili’s discussion of PMSM overheating provides context for these questions without establishing model-specific trip settings.

How Can Commissioning Responsibilities Be Made Clear?

Assign an owner to every step that could otherwise fall between the motor manufacturer, drive supplier, and machine builder. This includes parameter preparation, permitted identification procedures, feedback verification, initial operation, and acceptance testing. The project should identify who can approve a changed setting and who must retain the resulting records.

A useful commissioning sheet records the intended value, actual value, source document, and reason for any departure. It should also identify whether a setting is a motor parameter, a control adjustment, or a machine protection value. These categories should not be mixed when troubleshooting because they have different technical owners.

Keep any identification or test procedure within the manufacturer’s instructions and the site’s approved working methods. A general article cannot determine whether an installed shaft may rotate safely during setup or whether connected equipment tolerates a proposed test. Resolve those conditions before the commissioning window begins.

Which Operating Checks Confirm That the Selected PMSM and Its Inverter Meet the Requirements of the Intended Machine Duty?

Verify that the agreed operating states can be achieved without unexplained trips, unstable speed, or operation outside confirmed limits. Record the load condition alongside electrical observations so that a successful unloaded run is not mistaken for a complete duty test. Where temporary overload is required, the documented duration and recovery conditions should be part of the verification.

Mechanical observations belong in the acceptance record as well. An electrical parameter adjustment cannot correct every source of shaft vibration or bearing noise, and changing control settings prematurely can obscure the original symptom. The related guide to PMSM bearing noise and vibration diagnosis helps distinguish this investigation from purely electrical setup.

For projects within Leili’s industrial motor applications, provide the final machine duty and integration arrangement with the request for confirmation. This allows the discussion to cover the complete application rather than a motor viewed in isolation. Any exceptions should be written into the acceptance record before routine operation.

The final handover should include an approved parameter backup, wiring revision, software identification, test record, and a list of permitted changes. Retain the original approved configuration separately from later troubleshooting versions. When a replacement drive or motor is installed, this record becomes the basis for checking compatibility rather than an invitation to copy settings without review.
