Single rotor and dual rotor axial flux motors represent two different design philosophies.

The single rotor design emphasizes simplicity, cost control, and easier production, making it suitable for many commercial and industrial applications. The dual rotor design focuses on maximizing torque density, improving force balance, and supporting higher performance requirements.

For applications requiring the highest power density within limited space, the dual rotor structure has clear advantages. However, for large-scale manufacturing where reliability, cost, and production consistency are equally important, a single rotor design may provide a better overall solution.

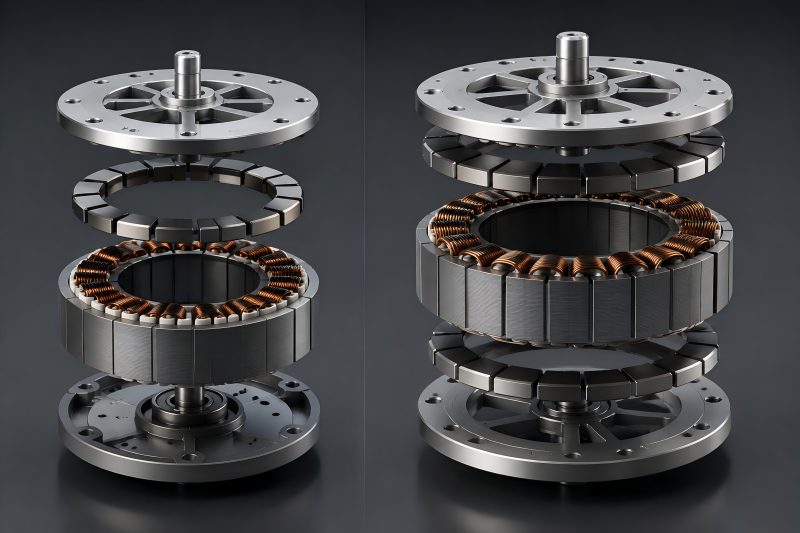

Basic Structure Difference Between Single Rotor and Dual Rotor Axial Flux Motors

The main difference between these two designs is the number and arrangement of rotors around the stator.

A single rotor axial flux motor features one rotor and one stator, with magnets on the rotor interacting with stator windings through a single air gap to produce torque.

A dual rotor axial flux motor uses two rotors positioned on both sides of the stator. The stator is located between the two rotors, creating two active air gaps. This structure allows magnetic forces to act from both sides, improving magnetic utilization and mechanical balance.

Structure	Single Rotor Axial Flux Motor	Dual Rotor Axial Flux Motor
Rotor quantity	One rotor	Two rotors
Air gap	One active air gap	Two active air gaps
Stator position	One side of rotor	Between two rotors
Axial length	Compact	Slightly longer
Torque density	High	Generally higher
Manufacturing complexity	Lower	Higher
Cost	More economical	Higher

The single rotor structure focuses on simplicity and cost efficiency, while the dual rotor structure focuses on maximizing performance within limited space.

Performance Comparison: Torque Density and Power Density

One of the biggest reasons engineers choose axial flux motors is their ability to achieve high torque density. The flat and wide magnetic path allows more active material to participate in torque generation.

A dual rotor design naturally has an advantage because the stator interacts with two magnetic fields. The electromagnetic force is distributed on both sides of the stator, allowing better utilization of copper and permanent magnets.

Performance Factor	Single Rotor Design	Dual Rotor Design
Torque output	High	Very high
Power density	High	Higher
Magnetic utilization	Good	Excellent
Rotor force balance	Moderate	Better
Suitable applications	General compact systems	High-performance systems

However, higher performance does not always mean better overall value. In applications where motor size and weight requirements are moderate, the additional performance of a dual rotor design may not justify the increased manufacturing difficulty.

For example, a compact industrial actuator may already meet its requirements with a single rotor motor. Adding a second rotor could increase cost without creating meaningful system benefits.

Mechanical Balance and Air Gap Control

Proper air gap control significantly affects axial flux motor operating performance.

In a single rotor motor, the magnetic attraction force between the rotor and stator acts mainly in one direction. This creates an axial force that must be supported by the bearing system and mechanical structure.

A dual rotor motor naturally balances these forces because the two rotors pull the stator from opposite directions. This reduces axial magnetic imbalance and can improve mechanical stability.

Mechanical Factor	Single Rotor	Dual Rotor
Axial force balance	Requires additional support	Naturally balanced
Bearing load	Higher consideration required	Reduced axial load influence
Assembly tolerance	Easier	More demanding
Air gap adjustment	Simpler	More critical

Although dual rotor designs have better force balance, they require more precise assembly. The distance between both rotors must be controlled carefully because uneven air gaps can reduce efficiency and create vibration.

Therefore, dual rotor motors offer better mechanical behavior, but only when manufacturing accuracy is well controlled.

Thermal Management Considerations

Heat management is another important difference between the two designs.

In a single rotor motor, heat generated inside the stator has fewer cooling paths. The rotor side may provide limited heat transfer depending on the structure. For continuous high-load operation, thermal design becomes a key challenge.

A dual rotor motor exposes both sides of the stator to rotating components, creating more opportunities for heat transfer. Some designs also use the rotor structure as part of the cooling solution.

Thermal Factor	Single Rotor	Dual Rotor
Stator cooling surface	Limited	Larger effective area
Continuous power capability	Moderate to high	High
Thermal design difficulty	Lower	Higher
High-load operation	Depends strongly on cooling	More suitable

However, the cooling advantage of dual rotor motors depends on the actual design. Simply adding another rotor does not automatically solve thermal problems. Cooling channels, housing design, material selection, and operating conditions still determine the final temperature performance.

Manufacturing Difficulty and Cost Comparison

From a manufacturing perspective, single rotor motors are easier to produce.

The stator assembly, rotor assembly, magnet placement, and final alignment process are relatively straightforward. Fewer components also mean fewer potential sources of production variation.

Dual rotor motors require tighter control over:

• Rotor parallelism
• Air gap uniformity
• Magnet positioning
• Stator alignment
• Assembly fixtures

These additional requirements increase production complexity.

Manufacturing Aspect	Single Rotor	Dual Rotor
Number of components	Fewer	More
Assembly process	Simpler	More complex
Tooling requirements	Lower	Higher
Production yield control	Easier	More demanding
Manufacturing cost	Lower	Higher

For prototype development, dual rotor designs can be attractive because they demonstrate excellent performance. However, when moving toward mass production, manufacturers must consider whether the performance improvement can offset the additional production investment.

Application Suitability Comparison

The best design depends heavily on the application.

Single rotor axial flux motors are often suitable for applications where compact size, reliability, and reasonable cost are priorities. Examples include industrial equipment, compact drive systems, robotics, and some electric mobility applications.

Dual rotor axial flux motors are more suitable for applications where maximum torque density and efficiency are critical. These include high-performance electric vehicles, aerospace systems, and advanced mobility platforms.

Application Requirement	Recommended Design
Low manufacturing cost	Single rotor
Compact structure	Single rotor
Maximum torque density	Dual rotor
High continuous power	Dual rotor
Easier maintenance	Single rotor
Premium performance systems	Dual rotor

Motor specifications alone should not determine the selection. System-level requirements such as available installation space, cooling conditions, production volume, and target cost should also be considered.

Which Design Is Better for Mass Production?

There is no universal answer to which axial flux motor design is better. A single rotor is easier to manufacture, easier to inspect, and easier to scale for large production volumes.

A dual rotor design provides higher performance potential but requires stronger manufacturing capability. Precision machining, accurate stacking, rotor balancing, and assembly control become more important.

For manufacturers producing motor cores, laminations, and stator assemblies, dual rotor motors also create additional requirements for dimensional accuracy. Small differences in stator thickness, flatness, or air gap control can directly influence motor efficiency and noise performance.
