DC Brushed Motor
WARM REMINDER
You can filter products according to your needs. This screening system is for reference only, if you do not match the product you want, you can contact us.
Naming Convention
Product Introduction
- Model: 116ZY
- Voltage & KV Value: Operates at 130V with KV values of 26.5 and 28.4 for efficient performance.
- Power & Current: Rated output power ranges from 2268W to 3170W, with electric current between 21.2A and 29.6A.
- Brushed DC Design: Features stator-mounted poles and brushes, with rotor winding and commutator ensuring smooth energy conversion.
Product Application
- Industrial: Industrial Controls
- Exercise & Health: Treadmill
Product Introduction
- Operating Range: Works within 6-20V, rated at 12V for optimal performance.
- Performance Specs: No-load speed of 75 r/min, max speed of 65 r/min at 1.58A.
- Torque & Power: Maximum output 3.5W, stall torque 40.8 mN·m, and current 10.8A.
Product Application
- Home appliances: hair dryer
- Industry: vending machines
Product Introduction

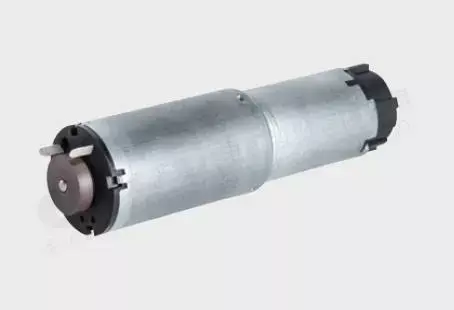

- Model: 26ZYJ546
- Performance: 10V, 295 RPM no-load, 260 RPM load, ≤5.2A load current, 1:18.4 reduction ratio.
- Load Capacity: Handles 700mN·m torque, stall torque ≥3500mN·m, ensuring stable and reliable performance.
- Power Efficiency: Low no-load current, strong torque output, optimized for precision and durability in motion applications.
Product Application
- Auto parts
Product Introduction
- Power & Performance: 12V DC motor with a 1/64.4 reduction ratio, delivering 100±10 r/min speed.
- Efficiency & Durability: ≤0.4A no-load current, ≤3A locked-rotor current, and ≥1000 mN·m torque.
- Quiet Operation: Noise level ≤60 dB(A), ensuring low-noise and smooth performance for sweeping applications.
Product Application
- Robot vacuum cleaner
Product Introduction
- Performance: 12V DC, 1:5.83 reduction ratio, 1300±100 RPM no-load speed, ensuring smooth and efficient operation.
- Load Capacity: Gridlock torque ≥300mN·m, locked-rotor current ≤8A, providing strong and stable performance.
- Noise Control: Operates at ≤60dB(A), ensuring low noise for quiet and efficient sweeping machine applications.
Product Application
- Robot vacuum cleaner
Product Introduction
- Performance: 12V DC, 1:22.15 reduction ratio, 320±30 RPM no-load speed, ensuring efficient and smooth operation.
- Load Capacity: Gridlock torque ≥245mN·m, locked-rotor current ≤1.7A, providing stable and reliable performance.
- Noise Control: Operates at ≤50dB(A), ensuring quiet functionality for sweeping machine side brush applications.
Product Application
- Robot vacuum cleaner
