PM stepper motor linear actuator motor 25BY412

Product Introduction
The rotor of the Leili PM stepping motor uses permanent magnetic materials. The PM stepping motor’s continuous operation follows the principle that the same poles repel and different poles attract between the rotor and the stator. It is generally an inner rotor type motor, and the N and S poles are evenly distributed on the outer surface of the cylindrical rotor (The outer surface is toothless). PM stepping motors are usually two-phase, with small torque and volume.
Industry: Valve control
Optional parts
Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.


PDF Export

  • Industry

  • 25

  • 7.5

  • 3.2

  • 0-30

  • 0-50

Performance parameter

motor model Step angle Excitation method Drive way Voltage Current / phase Coil Linear motion Single step exercise Linear thrust Holding torque noise Working temperature
(°) (VDC) (mA) Resistance / phase distance distance (N) AC500V (A) (℃)

(Ω) (mm) (mm)


25BY412 7.5 2-2 Bipolar 3.2 / 5 6max 0.00208 ≥ 150 3max ≤ 50 -10 ~ 50
Phase Bipolar (No strange sound)

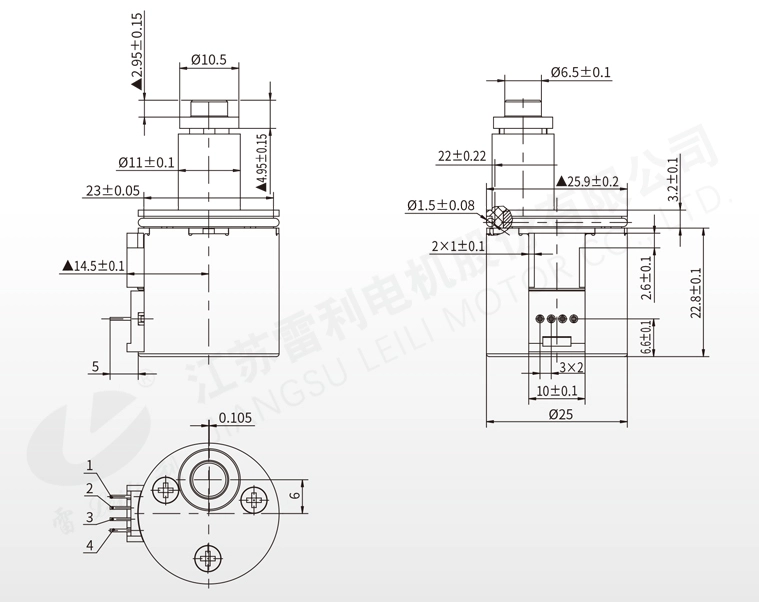

Mechanical dimension

PM stepper motor linear actuator motor 25BY412
