Performance parameter
Voltage （V） | Rated frequency （Hz） | Free-load power consumption （W） | Free-load current （mA） | Starting voltage （V） | Insulation resistance （MΩ） | Withstand voltage （V） | Rotation | Speed （RPM） | Running torque （kgf.cm） | Return torque （kgf.cm） | Insulation grade | Leakage current （mA） | Coil temperature rise （K） | Noise dB(A) | Leadwire strength （kgf） |
| 24 | 50/60 | ≤ 5 | ≤ 200 | 19 | room temperature ≥ 100 | AC1500, 1min, 1mA | CW/CCW | 50Hz, 5r/min 60Hz, 6r/min | ≥ 1.5 | ≤ 0.2 | F | 0.5 | ≤ 75 | ≤ 50 | ≥ 2,15s |
| 110 | 50/60 | ≤ 3.5 | ≤ 40 | 88 | room temperature ≥ 100 | AC1500, 1min, 1mA | CW/CCW | 50Hz, 5r/min 60Hz, 6r/min | ≥ 1.5 | ≤ 0.2 | F | 0.5 | ≤ 75 | ≤ 50 | ≥ 2,15s |
| 240 | 50/60 | ≤ 4 | ≤ 30 | 192 | room temperature ≥ 100 | AC1500, 1min, 1mA | CW/CCW | 50Hz, 5r/min 60Hz, 6r/min | ≥ 1.5 | ≤ 0.2 | F | 0.5 | ≤ 75 | ≤ 50 | ≥ 2,15s |

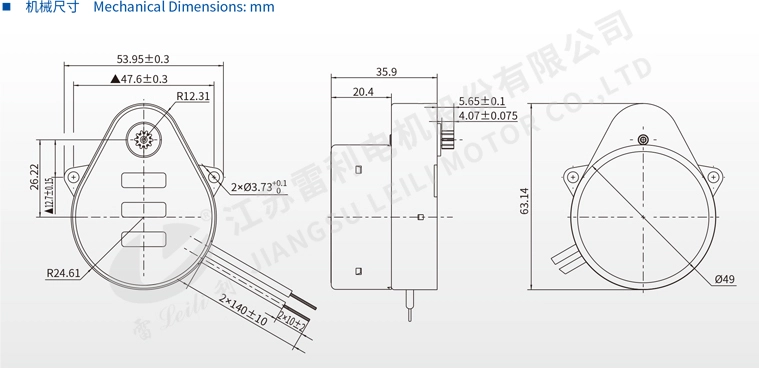

Mechanical dimension
Performance parameter
Voltage （V） | Rated frequency （Hz） | Free-load power consumption （W） | Free-load current （mA） | Starting voltage （V） | Insulation resistance （MΩ） | Withstand voltage （V） | Rotation | Speed （RPM） | Running torque （kgf.cm） | Return torque （kgf.cm） | Insulation grade | Leakage current （mA） | Coil temperature rise （K） | Noise dB(A) | Leadwire strength （kgf） |
| 24 | 50/60 | ≤ 5 | ≤ 200 | 19 | room temperature ≥ 100 | AC1500, 1min, 1mA | CW/CCW | 50Hz, 5r/min 60Hz, 6r/min | ≥ 1.5 | ≤ 0.2 | F | 0.5 | ≤ 75 | ≤ 50 | ≥ 2,15s |
| 110 | 50/60 | ≤ 3.5 | ≤ 40 | 88 | room temperature ≥ 100 | AC1500, 1min, 1mA | CW/CCW | 50Hz, 5r/min 60Hz, 6r/min | ≥ 1.5 | ≤ 0.2 | F | 0.5 | ≤ 75 | ≤ 50 | ≥ 2,15s |
| 240 | 50/60 | ≤ 4 | ≤ 30 | 192 | room temperature ≥ 100 | AC1500, 1min, 1mA | CW/CCW | 50Hz, 5r/min 60Hz, 6r/min | ≥ 1.5 | ≤ 0.2 | F | 0.5 | ≤ 75 | ≤ 50 | ≥ 2,15s |
Mechanical dimension
