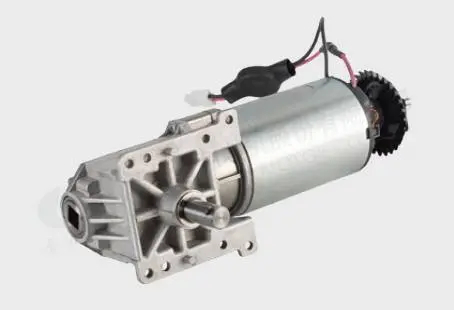

Z75YJ72 DC Brush Motor

Product Introduction
Model:75ZYJ72
A brushed DC motor is a DC motor, assembling main magnetic pole and brush on the stator and assembling the winding coil and commutator assembled on the rotor. The electric energy from the dc power supply enters the armature winding through the brush and commutator, generating the armature current. The magnetic field generated by the armature current interacts with the main magnetic field to generate the electromagnetic torque, making the motor rotate to drive the load.
Application
Appliance: Food mixer
Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:
Quantity:

PDF Export

  • Home appliance

  • 20

  • 3.75

  • 0-100

  • 100

  • 1-100

Performance parameter


电机型号 减速比
电压
空载
在最大效率时
堵转
工作范围
(V)
额定
(V)
速度
(r/min)
电流
(A)
速度
(r/min)
电流
(A)
扭矩
(mN.m)
扭矩
(g.cm)
输出
(W)
扭矩
(mN.m)
扭矩
(g.cm)
电流
(A)
75ZYJ72-1M 1/51.3 45~150 120 165 0.7 157 5 21.90 223.38 361 213 2172.6 43.60
75ZYJ72-2H 1/51.3 90~280 230 160 0.3 147 2.90 27.00 275.4 417 253 2580.6 24.70
75ZYJ72-4L 1/51.3 45~120 100 137 0.6 130 4.20 18.00 183.6 300 177.5 1810.5 36.33


Mechanical dimension


75ZYJ72 DC Brush Motor

Performance Curves


75ZYJ72 DC Brush Motor2
