42SM24 Permanent Magnet Synchronous Motor

█ Product Introduction

Model:42SM24
Permanent magnet synchronous motor (PMSM) is a synchronous motor excited by a permanent magnet to generate a synchronous rotating magnetic field. The permanent magnet, as a rotor, generates a rotating magnetic field. The three-phase stator windings, under the action of the rotating magnetic field, react through the armature to induce a three-phase symmetrical current.
█ Application
Home application: Air conditioner, refrigerator, water purifier, humidifier, air purifier

█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:


Inquiry PDF Export

Application:
Home appliance
Dimension Diameter（Hybrid Stepper Motor）:
20
Rated Current（A）Hybrid Stepper Motor:
0.1-0.5
Rated Voltage（V）Hybrid Stepper Motor:
0-5
Holding Torque（mN.m）Hybrid Stepper Motor:
0-100
Motion Frequency（pps）Hybrid Stepper Motor:
0-1500
Dimension Diameter（Geared Stepper Motor）:
20
Step Angle(°) Geared Stepper Motor:
3.75
Rated Voltage（DCV）Geared Stepper Motor:
5
Resistance(Ω) Geared Stepper Motor:
0-100
Operating Frequency (Geared Stepper Motor):
100
Pull in Torque(mN.m) Geared Stepper Motor:
1-100
Dimension Diameter (PM):
6.5
Step Angle(°) PM:
7.5
Rated Voltage（DCV）PM:
3.2
Resistance(Ω) PM:
0-30
Holding Torque（mN.m）PM:
0-50
Dimension Diameter (Synchronous Motor):
28
Output Torque (kgf,cm) Synchronous Motor:
≥0-2
Rated Voltage（V）Synchronous Motor:
0-100

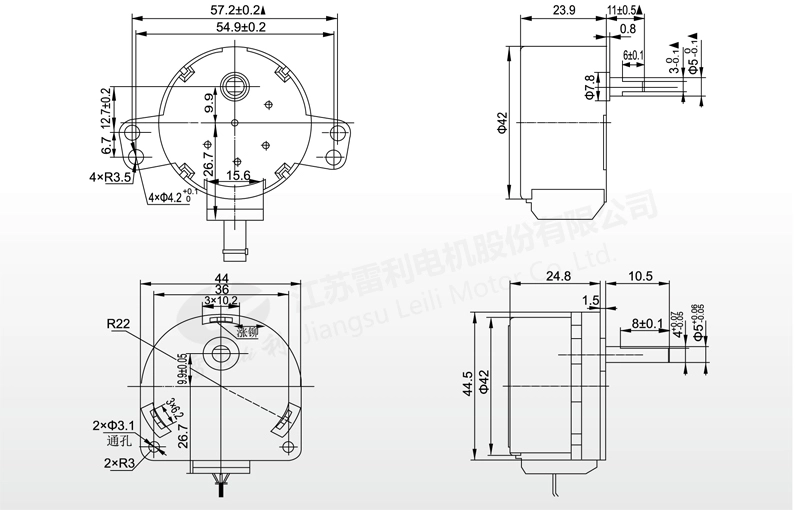

Product Description

Performance parameter

电机型号	额定电压	频率	转速	空载电流	空载功率	输出力矩	启动电压	温升	噪音	绝缘等级
电机型号	(VAC)	(Hz)	(RPM)	（mA)	(W)	(kgf·cm)	(V)	(K)	(A)	绝缘等级
42SM24	24	50/60	15/18	≤200	≤4	≥1.5	≤20	≤65	≤40	E
	110/120	50/60	5月6日	≤45	≤5	≥3	≤96	≤65	≤40	E
	110/120	50/60	15/18	≤45	≤5	≥2	≤96	≤65	≤40
	110/120	50/60	22/26	≤45	≤5	≥1.5	≤96	≤65	≤40
	220/240	50/60	5月6日	≤20	≤4	≥3	≤176	≤65	≤40
	220/240	50/60	15/18	≤20	≤4	≥2	≤176	≤65	≤40
	220/240	50/60	22/26	≤20	≤4	≥1.5	≤176	≤65	≤40
	220/240	50/60	12.5/15	≤20	≤4	≥2.5	≤176	≤65	≤40
