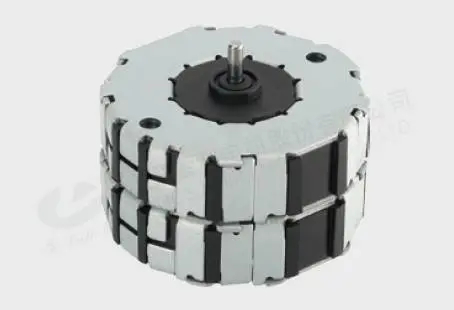

49SM28 Synchronous Motor

█ Product Introduction

Model:49SM28
Permanent magnet synchronous motor (PMSM) is a synchronous motor excited by a permanent magnet to generate a synchronous rotating magnetic field. The permanent magnet, as a rotor, generates a rotating magnetic field. The three-phase stator windings, under the action of the rotating magnetic field, react through the armature to induce a three-phase symmetrical current.
█ Application
Industry: valve control, timer

█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:



Inquiry PDF Export

Output Torque (kgf,cm) Synchronous Motor:
≥0-2, ≥2-4, ≥4-6, ≥6
Rated Voltage（V）Synchronous Motor:
0-100
Starting Voltage (V) Synchronous Motor:
≤9-20
No-load Current（A）Synchronous Motor:
≤More than 100

Product Description

Performance parameter

Motor type	Voltage	Coil resistance/phase	Capacitance	Frequency	Rotational speed	Starting voltage	No-load power	No-load current	Electrical strength	Noise	Operating ambient temperature
Motor type	（VAC）	(Ω)	(μF)	(Hz)	(r/min)	(V)	(W)	(mA)	Electrical strength	(A)	(℃)
49SM28	24	110	10	50/60	500/600	≤15	≤4.6	<190	AC 500[V]	≤ 55	-10 ～ 50
49SM28	24	110	10	50/60	500/600	≤15	≤4.6	(50pps)	1[min]	(Indistinct sound)	-10 ～ 50
