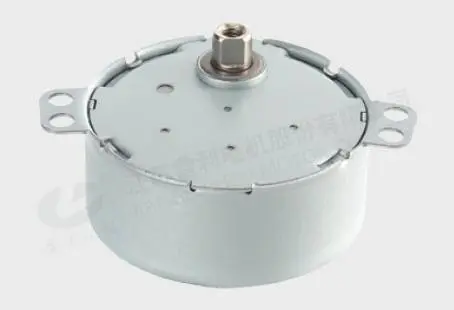

50SM24 Synchronous Motor

█ Product Introduction

Model: 50SM24
Permanent magnet synchronous motor (PMSM) is a synchronous motor excited by a permanent magnet to generate a synchronous rotating magnetic field. The permanent magnet, as a rotor, generates a rotating magnetic field. The three-phase stator windings, under the action of the rotating magnetic field, react through the armature to induce a three-phase symmetrical current.

█ Application：

Home appliances: Air conditioning, refrigerator, dishwasher, fireplace, automatic door lock, microwave oven, washing machine

█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:



Inquiry PDF Export

Application:
Home appliance
Dimension Diameter (Synchronous Motor):
50
Output Torque (kgf,cm) Synchronous Motor:
≥0-2, ≥2-4, ≥4-6, ≥6
Rated Voltage（V）Synchronous Motor:
0-100, 101-200, 201+
Starting Voltage (V) Synchronous Motor:
≤9-20, ≤20-90, ≤90-150, ≤150-180
No-load Current（A）Synchronous Motor:
≤10-30, ≤30-50, ≤50-80, ≤80-100, ≤More than 100

Product Description

Performance parameter

Motor type	Rated voltage	Frequency	Rotational speed	No-load current	No-load power	Output torque	Starting voltage	Temperature rise	Noise	Insulation class
Motor type	(VAC)	(Hz)	(RPM)	（mA)	(W)	(kgf·cm)	(V)	(K)	(A)	Insulation class
50SM24	100/120	50/60	3.3/4	≤50	≤5	≥5	≤85	≤75	≤40	A / E
	100/120	50/60	15/18	≤50	≤5	≥3	≤85	≤75	≤40
	100/120	50/60	20/24	≤50	≤5	≥2.5	≤85	≤75	≤40
	100/120	50/60	34/40	≤50	≤5	≥1	≤85	≤75	≤40
	220/240	50/60	3.3/4	≤50	≤5	≥5	≤187	≤75	≤40
	220/240	50/60	15/18	≤50	≤5	≥3	≤187	≤75	≤40
	220/240	50/60	20/24	≤50	≤5	≥2.5	≤187	≤75	≤40
	220/240	50/60	34/40	≤50	≤5	≥1	≤187	≤75	≤40
