Performance Parameter
| M24 Frame | M24L1 | M24L2 | M24L3 | ||
| General | |||||
| Insulation Class | B | ||||
| Duty Type | S1 | ||||
| Feed Back Method | Hall Sensor | ||||
| Commutation Angle | 120° | ||||
| Dielectrical Strength | 500 VAC / 1 KHz / 1 mA / 1 s | ||||
| Insulation Resistance | 100 MOhm / 500 VDC | ||||
| Performance | |||||
| Nominal Voltage | Un | V | 48 | ||
| Rated Power | Pn | W | 79 | 157 | 236 |
| Rated Torque | Tn | N·m | 0.25 | 0.5 | 0.75 |
| Rated Speed | Nn | RPM | 3000 | ||
| Rated Current | In | A | 2.3 | 4.7 | 7 |
| Resistance (line-line) | Rn | Ohm | 1.8 | 0.9 | 0.5 |
| Inductance (line-line) | L | mH | 2.3 | 1.1 | 0.7 |
| Winding Connection | - | - | Star | ||
| Pole Pairs | - | - | 4 | ||
| Length | LT | mm | 64 | 85 | 106 |
| Mass | - | Kg | 0.8 | 1.2 | 0.6 |
| Material | |||||
| End Cover | Aluminium Alloy | ||||
| Bearing | Deep Groove Ball Bearings | ||||
| Magnetic | Sinter NdFeB | ||||
| Shaft | Carbon Steel | ||||

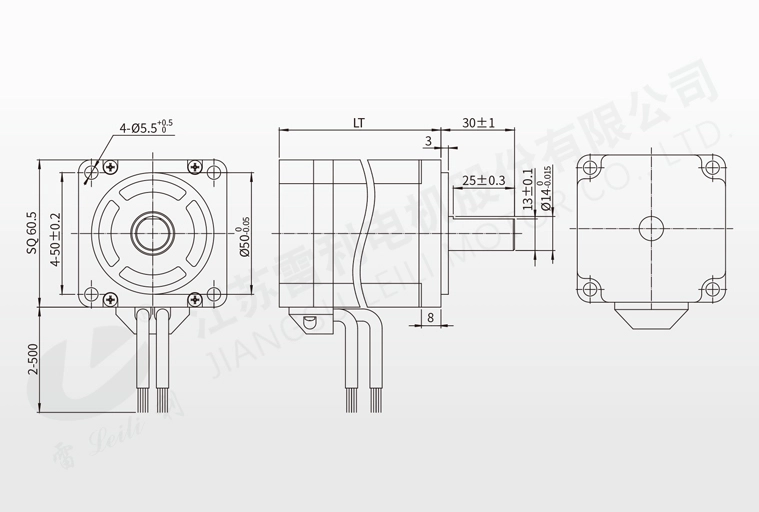

Mechanical Dimensions
Performance Parameter
| M24 Frame | M24L1 | M24L2 | M24L3 | ||
| General | |||||
| Insulation Class | B | ||||
| Duty Type | S1 | ||||
| Feed Back Method | Hall Sensor | ||||
| Commutation Angle | 120° | ||||
| Dielectrical Strength | 500 VAC / 1 KHz / 1 mA / 1 s | ||||
| Insulation Resistance | 100 MOhm / 500 VDC | ||||
| Performance | |||||
| Nominal Voltage | Un | V | 48 | ||
| Rated Power | Pn | W | 79 | 157 | 236 |
| Rated Torque | Tn | N·m | 0.25 | 0.5 | 0.75 |
| Rated Speed | Nn | RPM | 3000 | ||
| Rated Current | In | A | 2.3 | 4.7 | 7 |
| Resistance (line-line) | Rn | Ohm | 1.8 | 0.9 | 0.5 |
| Inductance (line-line) | L | mH | 2.3 | 1.1 | 0.7 |
| Winding Connection | - | - | Star | ||
| Pole Pairs | - | - | 4 | ||
| Length | LT | mm | 64 | 85 | 106 |
| Mass | - | Kg | 0.8 | 1.2 | 0.6 |
| Material | |||||
| End Cover | Aluminium Alloy | ||||
| Bearing | Deep Groove Ball Bearings | ||||
| Magnetic | Sinter NdFeB | ||||
| Shaft | Carbon Steel | ||||
Mechanical Dimensions
