64SM42 Synchronous Motor

█ Product Introduction

Model:64SM42
Permanent magnet synchronous motor (PMSM) is a synchronous motor excited by a permanent magnet to generate a synchronous rotating magnetic field. The permanent magnet, as a rotor, generates a rotating magnetic field. The three-phase stator windings, under the action of the rotating magnetic field, react through the armature to induce a three-phase symmetrical current.
█ Application
Industry: valve control

█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:



Inquiry PDF Export

Application:
Industry
Output Torque (kgf,cm) Synchronous Motor:
≥0-2, ≥6
Rated Voltage（V）Synchronous Motor:
0-100, 101-200, 201+
Starting Voltage (V) Synchronous Motor:
≤9-20, ≤20-90, ≤90-150, ≤150-180
No-load Current（A）Synchronous Motor:
≤10-30, ≤30-50, ≤50-80, ≤80-100, ≤More than 100

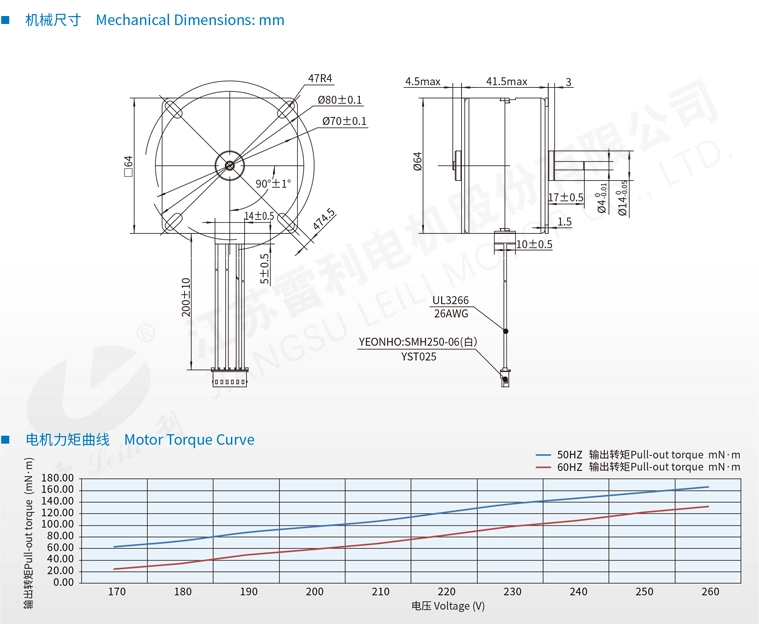

Product Description

Performance parameter

Motor type	Voltage	Capacitance	Frequency	Rotational speed	Output speed	No-load power	No-load current	Electrical strength	Noise	Operating ambient temperature
Motor type	（VAC）	(μF)	(pps)	(RPM)	(mN·m)	(W)	(A)	Electrical strength	(A)	(℃)
64SM42-4S	230	0.33	50/60	375/450	≥ 98	≤ 15	≤ 70	AC 1750[V]	≤ 55	-10 ～ 50
64SM42-4S	230	0.33	50/60	375/450	(60pps)	(60pps)	(60pps)	1［S］	(Indistinct sound)
64SM42-8S	24	30	50/60	375/450	≥ 88.2	≤ 15	≤ 650	AC 600[V]
64SM42-8S	24	30	50/60	375/450	(60pps)	(60pps)	(60pps)	1［S］
