We are committed to providing quality products to our customers and accept a minimum order of 2000 units.
For retail business please consult your local distributor.

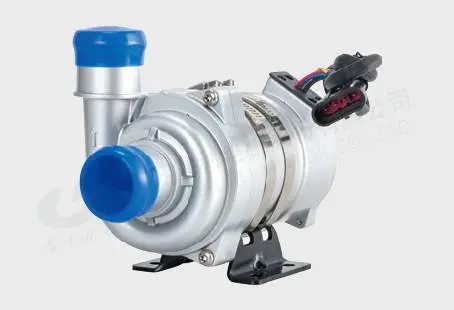

Product Detail
Performance Parameter
| motor model | rated power | Rated parameters | Water inlet and outlet size |
| (W) | |||
| BLP43-2XX | 250 | Q=2800L/h, H=16m | Ø38/Ø25 |
| 190 | Q=2400L/h, H=15m | ||
| BLP43-3XX | 250 | Q=6000L/h, H=8m | 38 |
| 200 | Q=6000L/h, H=6m | ||
| 130 | Q=5000L/h, H=5m | ||
| BLP43-4XX | 240 | Q=2400L/h, H=17m | Ø38/Ø25 |
| 250 | Q=6000L/h, H=8m | 38 |
Technical Parameters
| motor model | Working medium | Ambient temperature | Medium temperature | Rated voltage | weight | life | Protection class | Protective function | special function |
| BLP43-2XX | antifreeze | -40℃～ +85℃ | -40℃～ +85℃ | Rated voltage：DC24V； | 2.0kg | ≥ 20000h | IP68 | Overvoltage / undervoltage, | Fault feedback function, |
| ( Extreme temperature+105℃ ) | voltage range：DC18V ～ DC32V | ( Without stand ) | Stall, reverse | PWM speed regulation function | |||||
| Overcurrent, idling |
