Auto parts
0-100
0-40, 40-80, 80+
Performance Parameter
Model | Working Medium | Ambient Temperature | Medium Temperature | Rated Voltage | Weight | Lifetime | Protection Level | Protection Function |
| BLP93 | Antifreeze | -40℃～ +100℃ | -40℃～ +100℃ (Short time reachable +110℃) | DC12V； Voltage range：DC8V ～ DC16V | 370g | ≥ 12000h | IP67 | Over pressure, under pressure, blocked rotation, Reverse connection, overcurrent/overload, Idling, wire breakage, short circuit, etc |
Technical Parameters
| Model | Rated power | Rated parameter | Inlet and outlet size | Voltage platform |
| BLP93 | 30W | Q=10L/min 时，H ≥ 4m | Ø17mm | 12V |

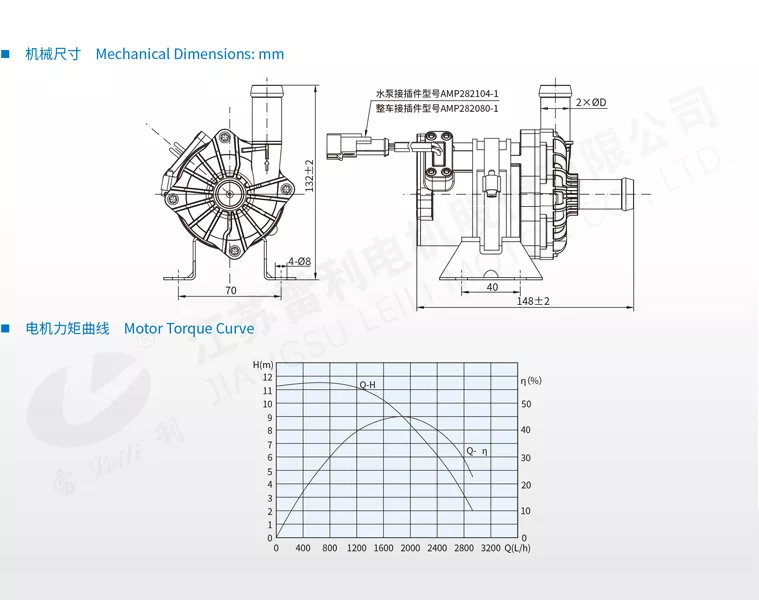

Mechanical dimension
Performance Parameter
Model | Working Medium | Ambient Temperature | Medium Temperature | Rated Voltage | Weight | Lifetime | Protection Level | Protection Function |
| BLP93 | Antifreeze | -40℃～ +100℃ | -40℃～ +100℃ (Short time reachable +110℃) | DC12V； Voltage range：DC8V ～ DC16V | 370g | ≥ 12000h | IP67 | Over pressure, under pressure, blocked rotation, Reverse connection, overcurrent/overload, Idling, wire breakage, short circuit, etc |
Technical Parameters
| Model | Rated power | Rated parameter | Inlet and outlet size | Voltage platform |
| BLP93 | 30W | Q=10L/min 时，H ≥ 4m | Ø17mm | 12V |
Mechanical dimension
