Hybrid Stepper Motor 42BYGH

█ Product Introduction

Model:42BYGH
Hybrid stepping motor, also called HB stepping motor, combines the features of variable reluctance stepping motor and permanent magnet stepping motor. It controls the angle movement by controlling the impulse imput, so that it could realize an accurate positioning.
█ Application
Industry: Monitors, OA financial equipment, weighing instruments, stage lighting
Sports Health: Medical devices

█ Optional parts

Planetary gearbox, lead screw, hollow shaft, drive

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:



Inquiry PDF Export

Application:
Industry
Dimension Diameter（Hybrid Stepper Motor）:
42
Rated Current（A）Hybrid Stepper Motor:
0.1-0.5, 0.5-1, 1-1.5, 1.5-2
Rated Voltage（V）Hybrid Stepper Motor:
0-5, 6-10, 10+
Holding Torque（mN.m）Hybrid Stepper Motor:
101-200, 201-300, 300+
Motion Frequency（pps）Hybrid Stepper Motor:
1500-3000, 3000-4500

Product Description

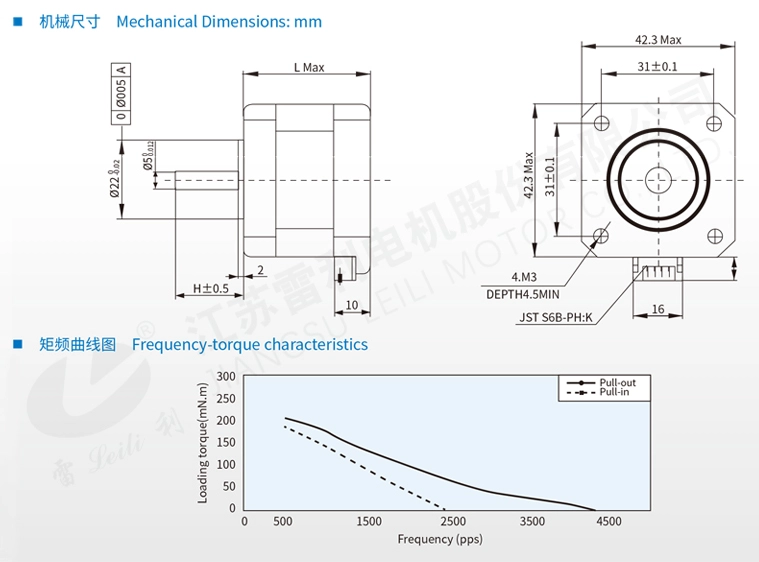

Product parameter

Unipolar drive

motor model	Step angle	Phase voltage	Current	Resistance	Inductance	Holding torque	Running torque	Starting frequency	Exercise frequency	Weight	Total height
motor model	(°)	(VDC)	(A)	(Ω)	(mH)	(mN.m)	(mN.m)	(PPS)	(PPS)	(Kg)	（mm）
42BYGH15-1	1.8	12.3	0.28	44	21	≥160	≥120	1700	2700	0.2	34
42BYGH22-1	1.8	3.6	0.8	4.5	4	≥235	≥170	1600	3600	0.3	40
42BYGH22-2	1.8	9.6	0.53	18	15	≥260	≥130	1600	2500	0.3	40
42BYGH30-15	0.9	2.2	2	1.1	0.9	≥313	≥160	2000	3000	0.42	48

Bipolar drive

motor model	Step angle	Phase voltage	Current	Resistance	Inductance	Holding torque	Running torque	Starting frequency	Exercise frequency	Weight	Total height
motor model	(°)	(VDC)	(A)	(Ω)	(mH)	(mN.m)	(mN.m)	(PPS)	(PPS)	(Kg)	（mm）
42BYGH15-3	1.8	12	0.4	30	37	≥255	≥200	2200	3500	0.2	34
42BYGH22-3	1.8	87	0.87	3.3	5	≥235	≥190	2500	6000	0.3	40
42BYGH9-1	1.8	3.2	1.7	3.1	4.5	≥310	≥260	1800	400	0.3	27
