PM Stepper Motor 35BY412-

█ Product Introduction

Leili PM stepper motor rotor using permanent magnet material, through the principle of same-sex repulsion between the rotor and the stator, continuous operation, generally for the inner rotor type motor, cylindrical rotor surface evenly distributed N, S pole (no teeth on the outer surface). PM stepper motors are generally two-phase, with small torque and volume.
█ Application
Industry: Printers

█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:



Inquiry PDF Export

Application:
Industry
Dimension Diameter (PM):
35
Step Angle(°) PM:
7.5
Rated Voltage（DCV）PM:
12, 24
Resistance(Ω) PM:
0-30, 31-60
Holding Torque（mN.m）PM:
0-50

Product Description

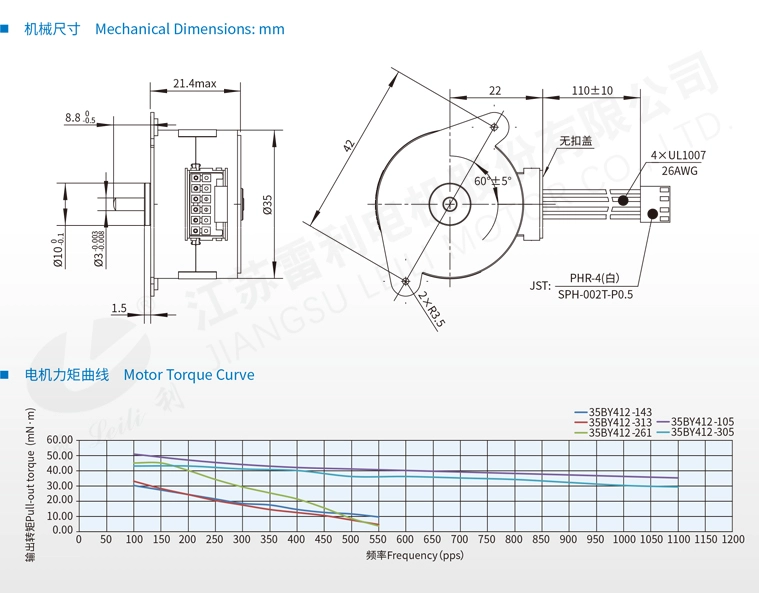

Performance parameter

Motor type	Step Angle (°)	Excitation mode	Driving mode	Voltage (VDC)	Electric current / phase (mA)	Coil resistance / phase (Ω)	Self-positioning torque (mN.m)	Holding torque (mN·m)	Insulation withstand voltage (Ω)	Noise (A)	Operating ambient temperature (℃)	Motor thickness (mm)
35BY412-105	7.5	2-2 Phase	Bipolar	24	0.6	5	11.76	≥ 44.1	AC 500 [V] 1 [min]	≤ 50 ( Indistinct sound )	-10 ～ 50	22
35BY412-261			Unipolarity	12	-	30	11.76	≥ 49				22
35BY412-305			Bipolar	24	0.5	7.2	11.76	≥ 44.1				16
35BY412-143			Unipolarity	12	-	40	8.82	≥ 39.2				15
35BY412-313			Unipolarity	24	-	200	8.82	≥ 30.38				15
