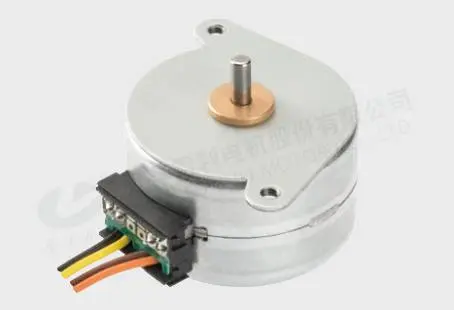

PM Stepper Motor 35BY412

Model:35BY412
The rotor of the Leili PM stepping motor uses permanent magnetic materials. The PM stepping motor’s continuous operation follows the principle that the same poles repel and different poles attract between the rotor and the stator. It is generally an inner rotor type motor, and the N and S poles are evenly distributed on the outer surface of the cylindrical rotor (The outer surface is toothless). PM stepping motors are usually two-phase, with small torque and volume.



Application:
Industry: Printer
Availability:
Quantity:

PDF Export

Product Description

We are committed to providing quality products to our customers and accept a minimum order of 2000 units.

For retail business please consult your local distributor.


Product Detail



Performance parameter


motor model Step angle Excitation method Drive way Voltage Current / phase Coil resistance / phase Self-positioning torque Self-positioning torque Holding torque noise Working temperature Motor thickness
(°) (VDC) (mA) (Ω) (mN.m) (mN·m) (Ω) (A) (℃) (mm)
35BY412-105 7.5 2-2
24 0.6 5 11.76 ≥ 44.1 AC 500 [V] ≤ 50 -10 ~ 50 22
Phase Bipolar 1 [min] (No strange sound)
35BY412-261

12 - 30 11.76 ≥ 49

22

Unipolarity

35BY412-305

24 0.5 7.2 11.76 ≥ 44.1

16

Bipolar

35BY412-143

12 - 40 8.82 ≥ 39.2

15

Unipolarity

35BY412-313

24 - 200 8.82 ≥ 30.38

15

Unipolarity
