Φ250 EC Backward-curved Centrifugal Fan
Product Introduction
- 230VAC, 50/60Hz input, 2100 RPM speed, 95W power, 75dB(A) noise level.
- IP54 protection, Class B insulation, thermal and rotor protection, motor current limitation.
- 0–10VDC/PWM input, PP impeller, ball bearings, CCC and CE certified.
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Performance Parameters
| Type | Rated Voltage (VAC) |
Frequency (Hz) |
Speed (r/min) |
Max Input Power (W) |
Noise(@1m) Sound Pressure Level (dB(A)) |
Amb Temp (℃) |
Wiring Method |
| BF250A-WE072C-2A15-02 | 230 | 50/60 | 2100 | 95 | 75 | -25～+60 | W1 |
Mechanical Dimensions: mm

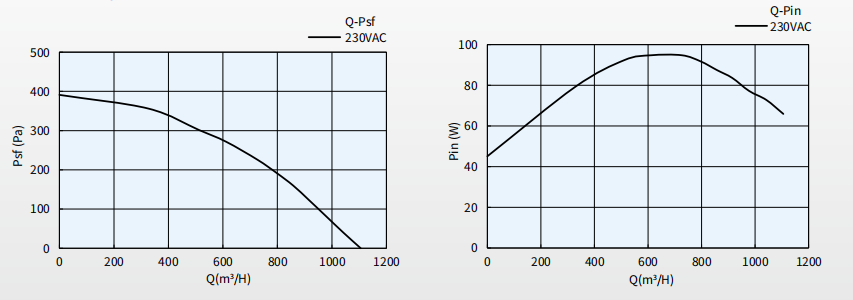

Fan Performance Curve
