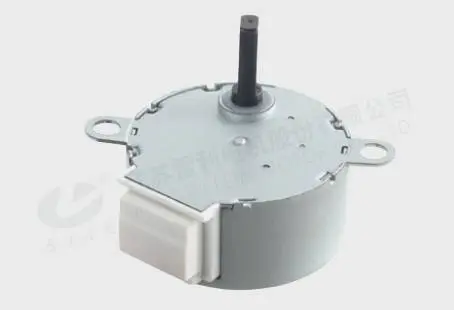

35BYJ46 Geared Stepper Motor

Product Introduction
Model: 35BYJ46
The rotor of Leili permanent magnet stepping motor (BYJ series stepping motor) is made of permanent magnet material, and the number of poles of the rotor is the same with that of the stator. It is characterized by good dynamic performance and large output torque
Application
Home appliances: air conditioners, refrigerators, automatic door locks
Industry: monitors, electronic instruments
Optional parts
Shaft length, frame

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.
Availability:
Quantity:

PDF Export

  • Home appliance  Industry

  • 35

  • 7.5

  • 12

  • 101-200

  • 100

  • 1-100  101-200

Performance parameter


model voltage
V
resistance
(Ω)
freq
(PPS)
pull-in torque
(mN.m)
torque
(mN.m)
pull-in freq
(PPS)
pull-out freq
(PPS)
temp
K
noise
dB(A)
stepping angle
(1-2phase)
35BYJ46 12 100 100 ≥147 ≥78.4 ≥350 ≥600 ≤60 ≤40 7.5°/85
12 130 100 ≥147 ≥78.4 ≥350 ≥600 ≤60 ≤40
12 200 100 ≥78.4 ≥39.2 ≥350 ≥600 ≤60 ≤40
12 150 100 ≥78.4 ≥39.2 ≥350 ≥600 ≤60 ≤40 7.5°/43.75


Mechanical dimension

35BYJ46 Geared Stepper Motor
