Performance Parameter
| Motor type | Rated voltage (V) | Rated frequency (Hz) | Power (W) | Electric current (A) | Starting voltage (V) | Output torque (N·m) | Speed gear | Rotational speed (RPM) | Insulation class | Motor efficiency | System efficiency | PFC |
| BLP61-x | can be used under both 115VAC & 230VAC | 60/50 | 1120 | 14.5/7.5 | 103/215 | 2.6 | Speed Variable | 1500~3450 | F | >90% | >85% | can PFC add |

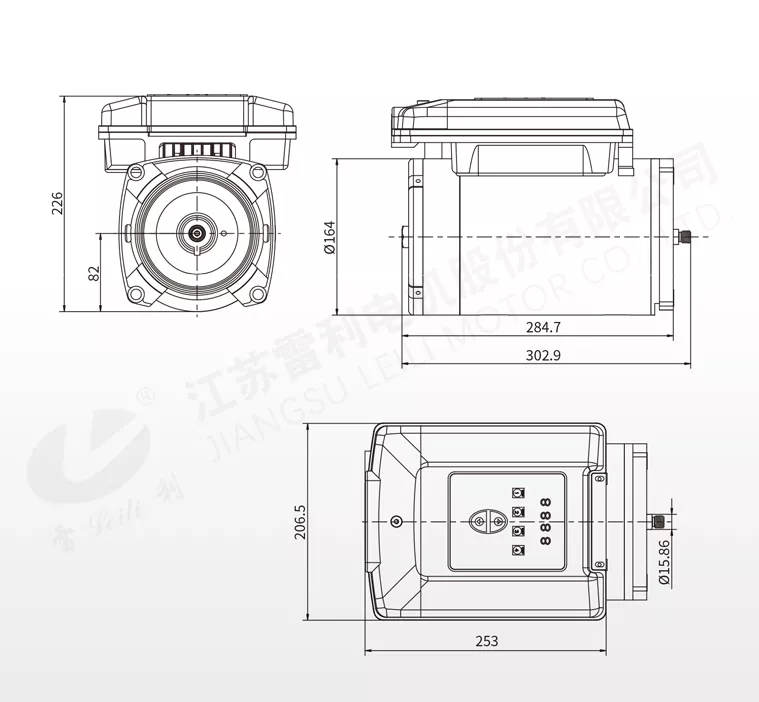

Mechanical Dimensions
Performance Parameter
| Motor type | Rated voltage (V) | Rated frequency (Hz) | Power (W) | Electric current (A) | Starting voltage (V) | Output torque (N·m) | Speed gear | Rotational speed (RPM) | Insulation class | Motor efficiency | System efficiency | PFC |
| BLP61-x | can be used under both 115VAC & 230VAC | 60/50 | 1120 | 14.5/7.5 | 103/215 | 2.6 | Speed Variable | 1500~3450 | F | >90% | >85% | can PFC add |
Mechanical Dimensions
