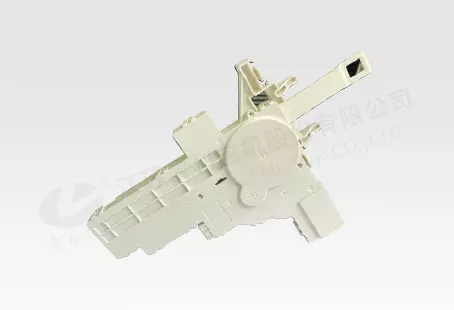

TLMJ11-1
Product Introduction
- Electrical Performance: Rated 12V, no-load current ≤0.1A, operating current ≤0.15A, stall current ≤0.5A.
- Mechanical Features: Single travel time 30s±20%, rack travel 100±2mm, pushing force >70N, overload >120N.
- Durability & Noise: Product lifecycle ≥5000 times, noise ≤48dB (30cm), overload protection ≥100N for safety.
Product Application
- Smart appliances
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Rated Voltage (V) |
No-load Current (mA) |
Current (mA) |
Stall Current |
Single travel time (s) |
Racktravel (mm) |
Pushing force (N) |
Overload protection (N) |
Noise dB(A) |
Product life cycle(times) |
Overload |
| 12 | ≤0.1 | ≤0.15 | ≤0.5 | 30 (1±20%) |
100±2 | >70 | >120 | ≤48 (30cm) |
≥5000 | ≥100 |

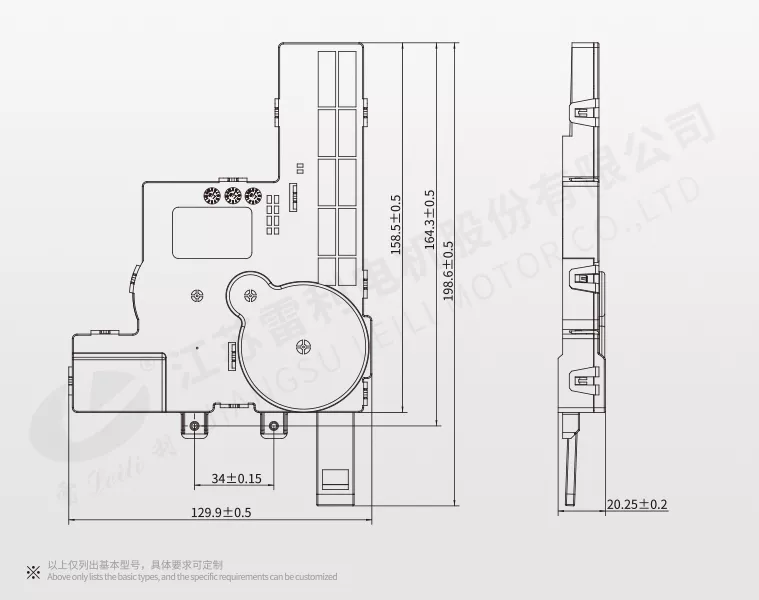

Mechanical Dimensions: mm
