Φ175 EC Backward-curved Centrifugal Fan-2
Product Introduction
- 230V AC, 50/60Hz, 4400 RPM speed, 110W max input power.
- Operates in -25°C to +60°C, 80 dB(A) noise at 1 meter.
- Φ175mm backward-curved impeller, efficient EC motor, W1 wiring method.
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Performance Parameters
| Type | Rated Voltage (VAC) |
Frequency (Hz) |
Speed (r/min) |
Max input Power (W) |
Noise(@1m) Sound Pressure Level (dB(A)) |
Amb Temp (℃) |
Wiring Method |
| BF175A-WE072C-1A13-01 | 230 | 50/60 | 4400 | 110 | 80 | -25～+60 | W1 |

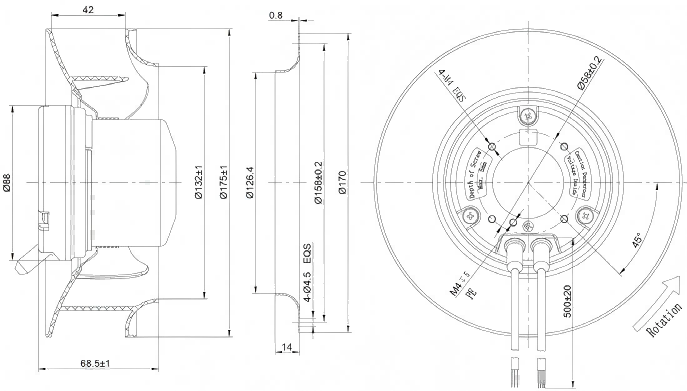

Mechanical Dimensions: mm
Fan Performance Curve
