Φ175 EC Backward-curved Centrifugal Fan
Product Introduction
- Rated at 230VAC, 50/60Hz, delivers 3200 r/min speed with 54W input power.
- Operates from -25℃ to +60℃, noise level is 68 dB(A) at 1 meter.
- Compact design, W1 wiring method, efficient EC motor with backward-curved impeller.
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Performance Parameters
| Type | Rated Voltage (VAC) |
Frequency (Hz) |
Speed (r/min) |
Max input Power (W) |
Noise(@1m) Sound Pressure Level (dB(A)) |
Amb Temp (℃) |
Wiring Method |
| BF175A-WE072C-1A13-01 | 230 | 50/60 | 3200 | 54 | 68 | -25～+60 | W1 |
Mechanical Dimensions: mm

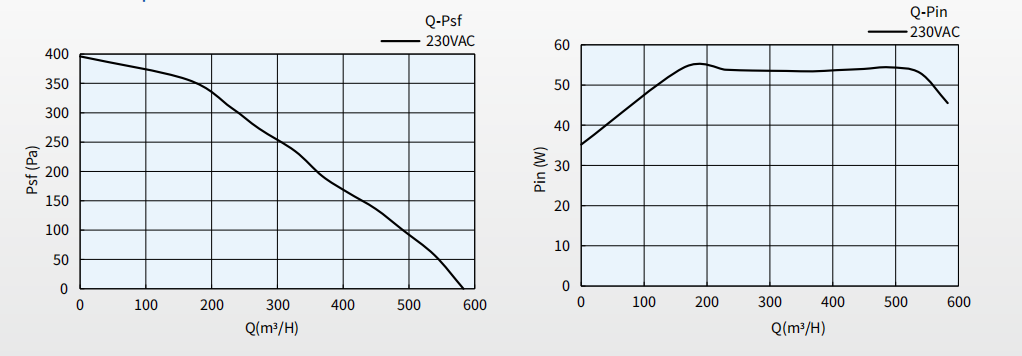

Fan Performance Curve
