Φ190 EC Backward-curved Centrifugal Fan-2

Φ190 EC Backward-curved Centrifugal Fan-2

Product Introduction

  • 230V, 3300 RPM speed, 90W power with low 73 dB(A) noise output.
  • IP54 rated, PP impeller, Class B insulation, and ball bearings for maintenance-free operation.
  • 0–10VDC/PWM input, soft start, thermal protection, and motor current limitation features included.

Performance Parameters

Type Rated
Voltage
(VAC)
Frequency
(Hz)
Speed
(r/min)
Max Input
Power
(W)
Noise(@1m)
Sound
Pressure Level
(dB(A))
Amb Temp
(℃)
Wiring
Method
BF190A-WE072C-2A15-01 230 50/60 3300 90 73 -25~+60 W1

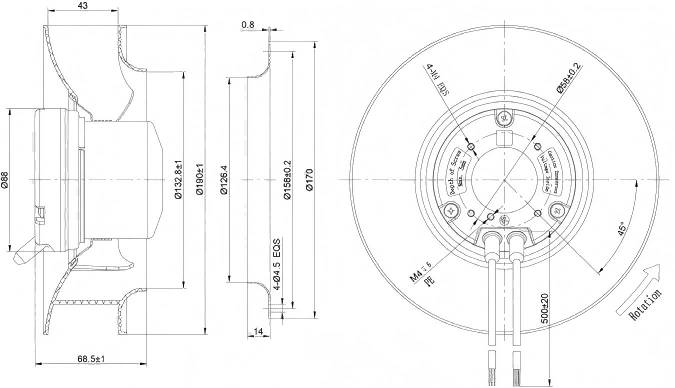

Mechanical Dimensions: mm

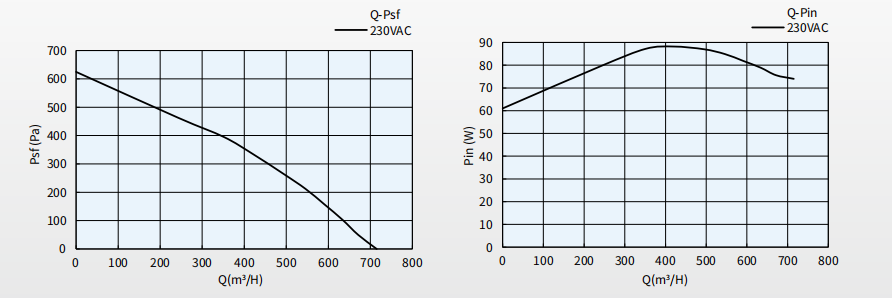

Φ190 EC Backward-curved Centrifugal Fan-2 DimensionsFan Performance Curve

Φ190 EC Backward-curved Centrifugal Fan-2 Curve
