Φ190 EC Backward-curved Centrifugal Fan-3
Product Introduction
- 230VAC, 4200 RPM speed, 200W power, quiet 82 dB(A) at 1m, wide temp range.
- PP impeller, IP54 protection, Class B insulation, soft start, thermal and phase failure protection.
- 0–10VDC/PWM input, current limitation, CCC & CE approved, ball bearings, rotor protection included.
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Performance Parameters
| Type | Rated Voltage (VAC) |
Frequency (Hz) |
Speed (r/min) |
Max Input Power (W) |
Noise(@1m) Sound Pressure Level (dB(A)) |
Amb Temp (℃) |
Wiring Method |
| BF190A-WE072C-3A19-01 | 230 | 50/60 | 4200 | 200 | 82 | -25～+60 | W1 |

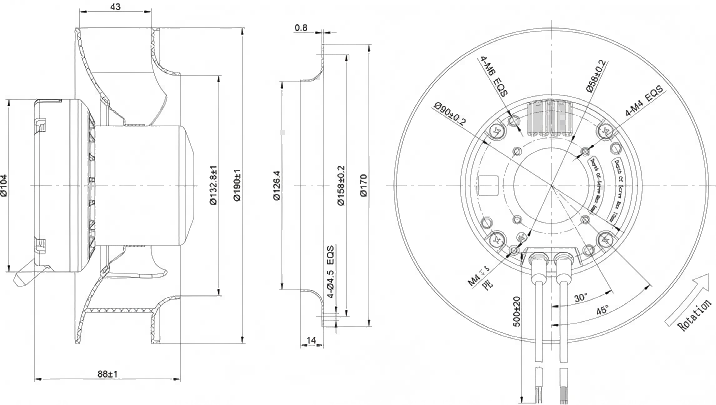

Mechanical Dimensions: mm

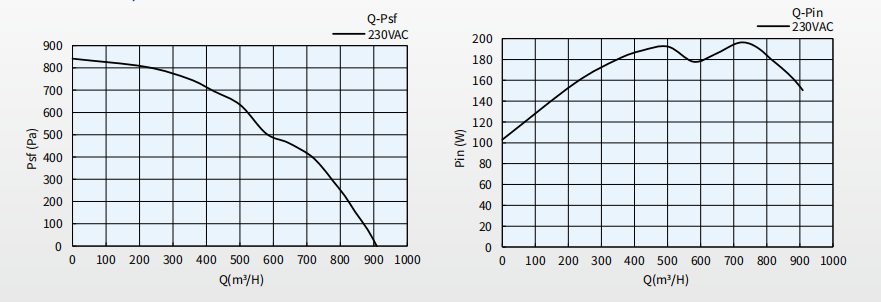

Fan Performance Curve
