Φ190 EC Backward-curved Centrifugal Fan
Product Introduction
- 230VAC, 50/60Hz, 2900RPM speed, 60W input power, quiet 70dB(A) noise at 1 meter.
- Operates reliably in ambient temperatures from -25°C to +60°C, suitable for varied climates.
- Compact Φ175mm size, backward-curved blades, W1 wiring method, supports EC motor control.
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Performance Parameters
| Type | Rated Voltage (VAC) |
Frequency (Hz) |
Speed (r/min) |
Max Input Power (W) |
Noise(@1m) Sound Pressure Level (dB(A)) |
Amb Temp (℃) |
Wiring Method |
| BF190A-WE072C-1A13-02 | 230 | 50/60 | 2900 | 60 | 70 | -25～+60 | W1 |

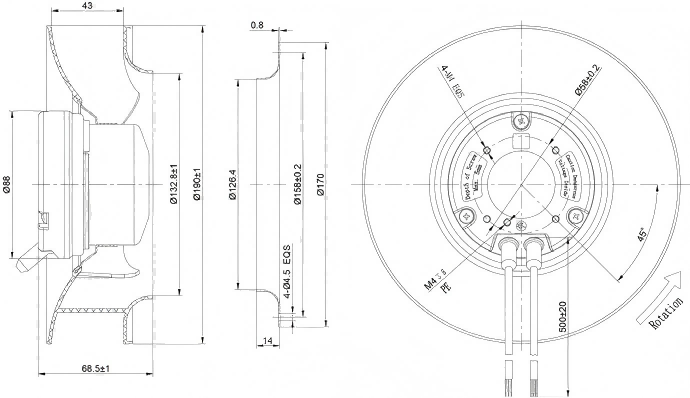

Mechanical Dimensions: mm

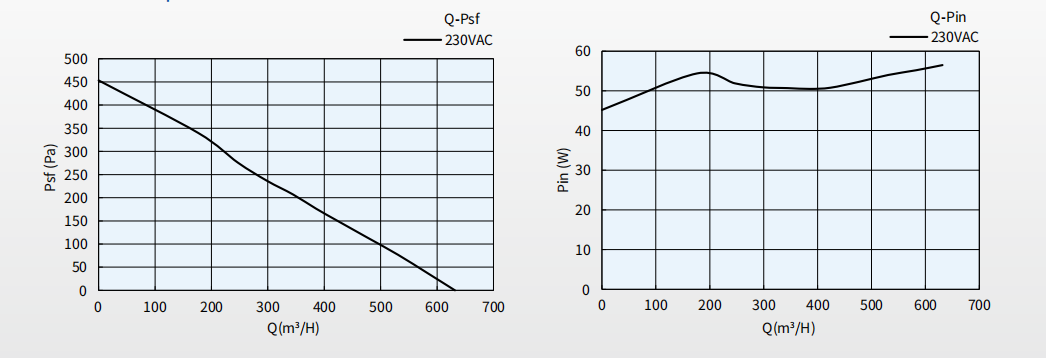

Fan Performance Curve
