Φ220 EC Backward-curved Centrifugal Fan-2
Product Introduction
- Rated voltage: 230VAC, Frequency: 50/60Hz, Speed: 3200 r/min, Power: 170W
- Soft start, motor current limit, thermal and phase failure protection included
- PP impeller, IP54 protection, Class B insulation, CE & CCC certified, ball bearings
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Performance Parameters
| Type | Rated Voltage (VAC) |
Frequency (Hz) |
Speed (r/min) |
Max Input Power (W) |
Noise(@1m) Sound Pressure Level (dB(A)) |
Amb Temp (℃) |
Wiring Method |
| BF190A-WE072C-3A18-01 | 230 | 50/60 | 3200 | 170 | 74 | -25～+60 | W1 |

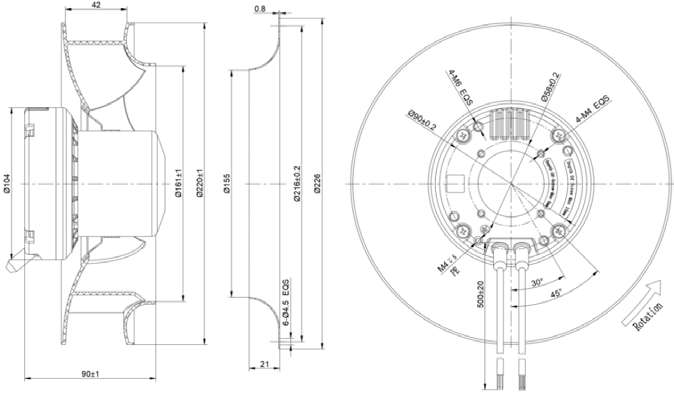

Mechanical Dimensions: mm

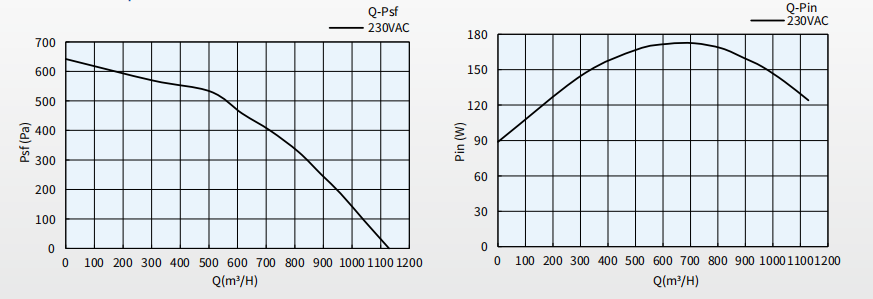

Fan Performance Curve
