Φ220 EC Backward-curved Centrifugal Fan
Product Introduction
- 230VAC, 50/60Hz, 2800RPM, 100W with 0–10VDC/PWM control, current limit, and soft start.
- Backward-curved PP impeller, compact W1 wiring, and maintenance-free ball bearings ensure long-lasting performance.
- IP54 protection, Class B insulation, thermal and phase failure protection, CCC and CE certified.
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Performance Parameters
| Type | Rated Voltage (VAC) |
Frequency (Hz) |
Speed (r/min) |
Max Input Power (W) |
Noise(@1m) Sound Pressure Level (dB(A)) |
Amb Temp (℃) |
Wiring Method |
| BF220A-WE072C-1A20-01 | 230 | 50/60 | 2800 | 100 | 71 | -25～+60 | W1 |

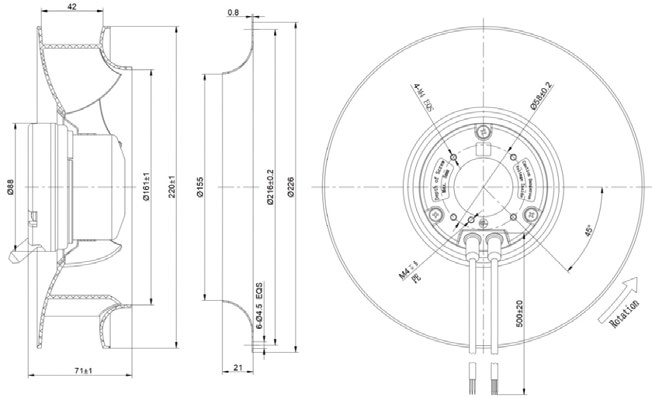

Mechanical Dimensions: mm

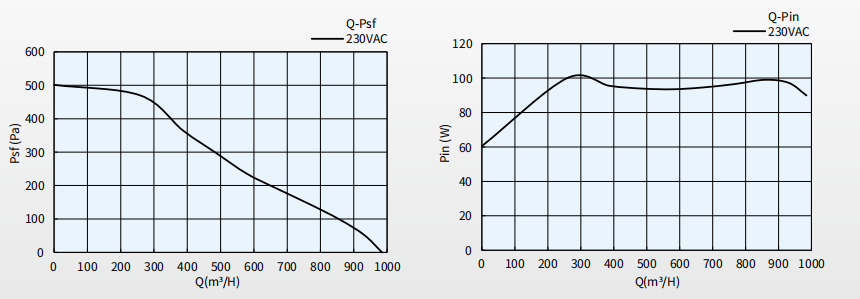

Fan Performance Curve
