Φ225 EC Backward-curved Centrifugal Fan-2

Φ225 EC Backward-curved Centrifugal Fan-2

Product Introduction

  • 230V, 50/60Hz, 3020 RPM speed, 180W input, IP54 protection, Class B insulation
  • 0–10VDC/PWM input, soft start, thermal protection, motor current limit, phase failure detection
  • PP impeller, maintenance-free ball bearings, W1 wiring, CCC and CE certified

Performance Parameters

Type Rated
Voltage
(VAC)
Frequency
(Hz)
Speed
(r/min)
Max Input
Power
(W)
Noise(@1m)
Sound
Pressure Level
(dB(A))
Amb Temp
(℃)
Wiring
Method
BF225A-WE072C-3A18-02 230 50/60 3020 180 80 -25~+60 W1

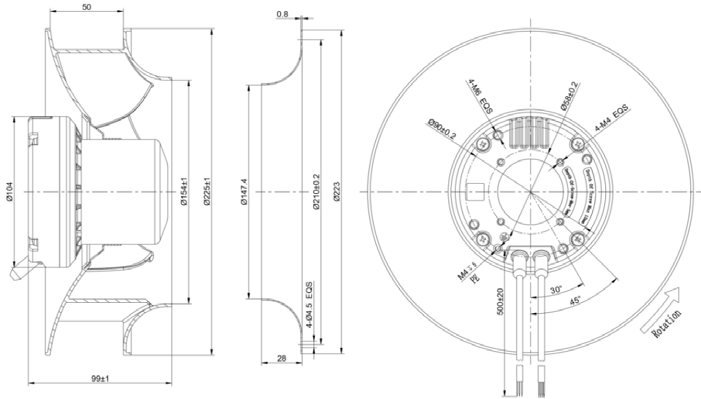

Mechanical Dimensions: mm

Φ225 EC Backward-curved Centrifugal Fan-2

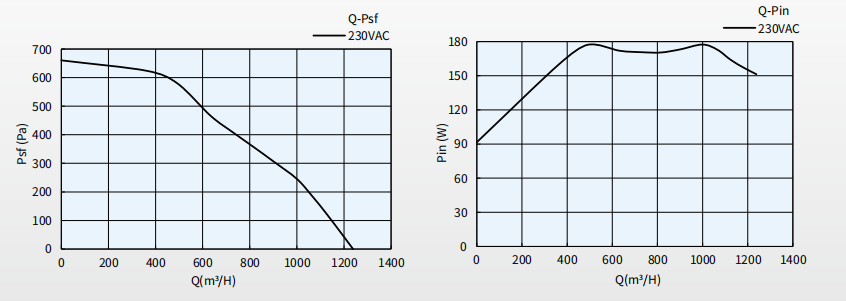

Fan Performance Curve

Φ225 EC Backward-curved Centrifugal Fan-2 curve
