Φ225 EC Backward-curved Centrifugal Fan

Φ225 EC Backward-curved Centrifugal Fan

Product Introduction

  • 230V, 50/60Hz, 2400rpm, 110W max input power, low 75 dB(A) noise level.
  • Soft start, thermal and current protection, phase failure detection, precise 0–10VDC/PWM control.
  • PP impeller, IP54 protection, Class B insulation, CE/CCC approved, ball bearings, maintenance-free design.

Performance Parameters

Type Rated
Voltage
(VAC)
Frequency
(Hz)
Speed
(r/min)
Max Input
Power
(W)
Noise(@1m)
Sound
Pressure Level
(dB(A))
Amb Temp
(℃)
Wiring
Method
BF225A-WE072C-2A17-02 230 50/60 2400 110 75 -25~+60 W1

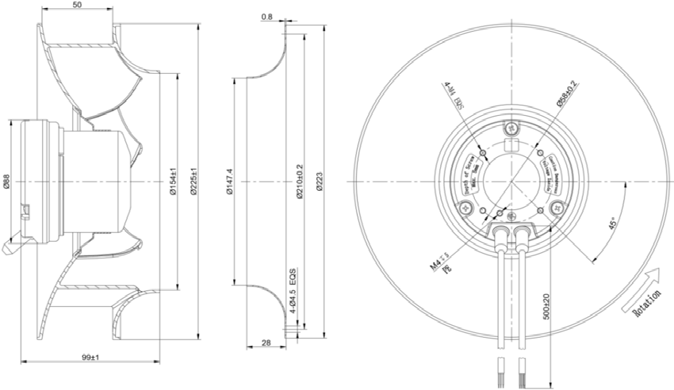

Mechanical Dimensions: mm

Φ225 EC Backward-curved Centrifugal Fan

Fan Performance Curve

Φ225 EC Backward-curved Centrifugal Fan curve
