Φ250 EC Backward-curved Centrifugal Fan-2
Product Introduction
- 230V AC, 50/60Hz, 2560 rpm speed, 180W power, IP54 protection, Class B insulation
- Soft start, motor current limit, thermal and phase failure protection, 0–10V/PWM control
- PP impeller, W1 wiring, CE/CCC certified, maintenance-free ball bearings, ambient range -25℃ to +60℃
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Performance Parameters
| Type | Rated Voltage (VAC) |
Frequency (Hz) |
Speed (r/min) |
Max Input Power (W) |
Noise(@1m) Sound Pressure Level (dB(A)) |
Amb Temp (℃) |
Wiring Method |
| BF250A-WE072C-3A18-03 | 230 | 50/60 | 2560 | 180 | 80 | -25～+60 | W1 |

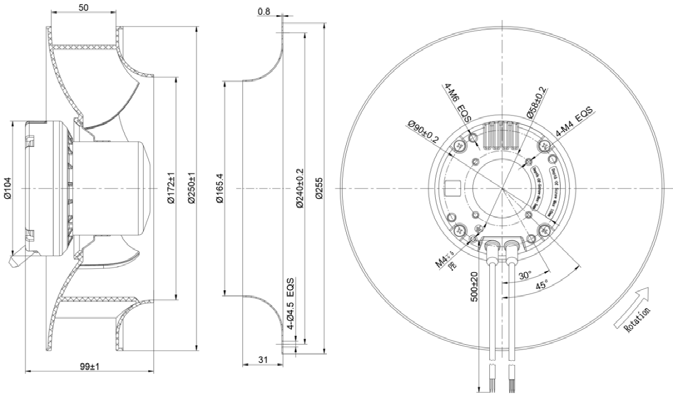

Mechanical Dimensions: mm
Fan Performance Curve
