Φ250 EC Backward-curved Centrifugal Fan-3
Product Introduction
- 230VAC, 50/60Hz, 3780 RPM, 490W max power, noise level 82 dB(A).
- Soft start, 0–10VDC/PWM control, motor current limitation, thermal and phase failure protection.
- PP impeller, IP54 protection, Class B insulation, CE/CCC certified, ball bearings, W1 wiring.
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Performance Parameters
| Type | Rated Voltage (VAC) |
Frequency (Hz) |
Speed (r/min) |
Max Input Power (W) |
Noise(@1m) Sound Pressure Level (dB(A)) |
Amb Temp (℃) |
Wiring Method |
| BF250C-WE102C-2A19-01 | 230 | 50/60 | 3780 | 490 | 82 | -25～+60 | W1 |
Mechanical Dimensions: mm

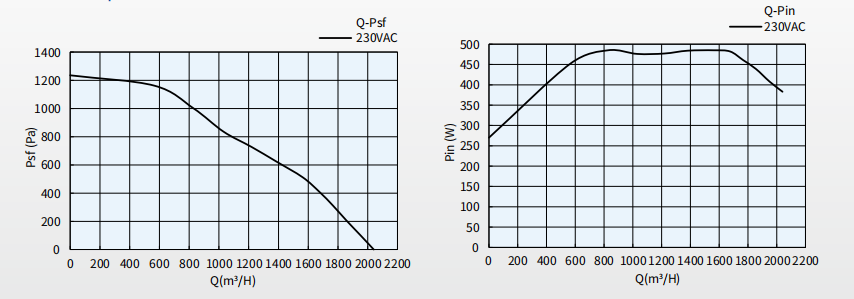

Fan Performance Curve
