Φ280 EC Backward-curved Centrifugal Fan
Product Introduction
- EC motor, 230V, 50/60Hz, 2600 RPM, IP54 protection, soft start, thermal protection.
- 490W power, 79 dB(A) noise, -25~+60℃, ball bearings, current and phase failure protection.
- PP impeller, Class B insulation, CCC and CE certified, supports 0-10VDC/PWM input control.
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]

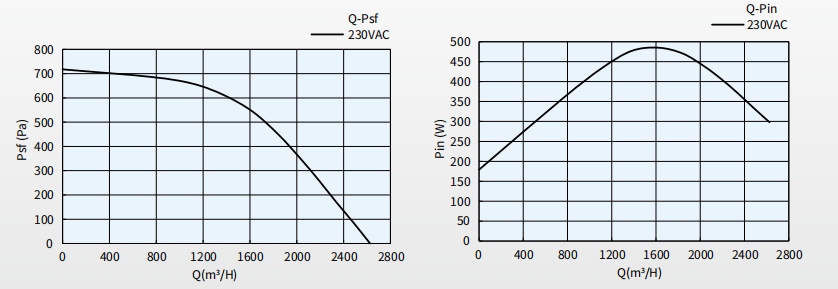

Performance Parameters
Type | Rated Voltage (VAC) |
Frequency (Hz) |
Speed (r/min) |
Max Input Power (W) |
Noise(@1m) Sound Pressure Level (dB(A)) |
Amb Temp (℃) |
Wiring Method |
BF280A-WE102C-2A19-02 | 230 | 50/60 | 2600 | 490 | 79 | -25~+60 | W1 |
