Φ310 EC Backward-curved Centrifugal Fan-2
Product Introduction
- Rated 230VAC, 50/60Hz, 2280 rpm, 520W max input power, low noise 78 dB(A).
- IP54 protection, Class B insulation, 0–10VDC/PWM control, soft start, phase failure detection.
- PP impeller, CCC CE approved, ball bearings, motor current limitation, thermal protection included.
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Performance Parameters
| Type | Rated Voltage (VAC) |
Frequency (Hz) |
Speed (r/min) |
Max Input Power (W) |
Noise(@1m) Sound Pressure Level (dB(A)) |
Amb Temp (℃) |
Wiring Method |
| BF310B-WE102C-3A10-02 | 230 | 50/60 | 2280 | 520 | 78 | -25～+60 | W1 |

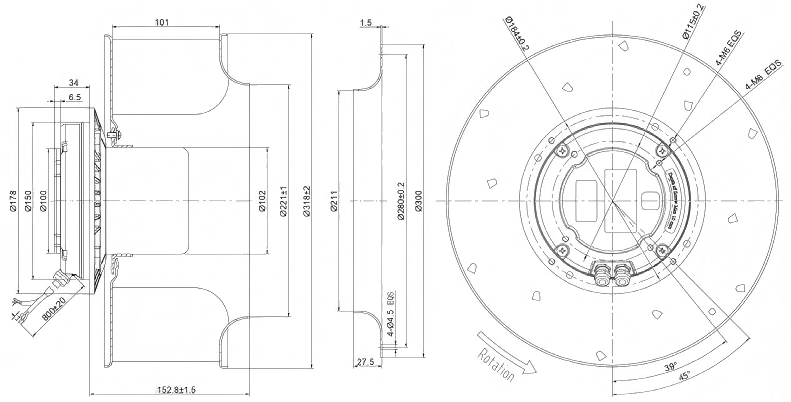

Mechanical Dimensions: mm

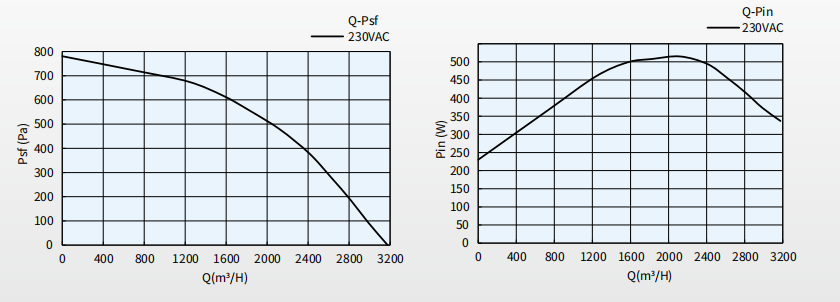

Fan Performance Curve
