Φ355 EC Backward-curved Centrifugal Fan
Product Introduction
- 230VAC, 50/60Hz, 1900RPM, 500W max input, 80dB(A) noise at 1m.
- Wide temp range (-25~+60℃), 0–10VDC/PWM control, soft start, IP54 protection.
- PP impeller, Class B insulation, ball bearings, motor current/thermal/phase failure protection.
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Performance Parameters
| Type | Rated Voltage (VAC) |
Frequency (Hz) |
Speed (r/min) |
Max Input Power (W) |
Noise(@1m) Sound Pressure Level (dB(A)) |
Amb Temp (℃) |
Wiring Method |
| BF355A-WE102C-3A10-03 | 230 | 50/60 | 1900 | 500 | 80 | -25～+60 | W1 |

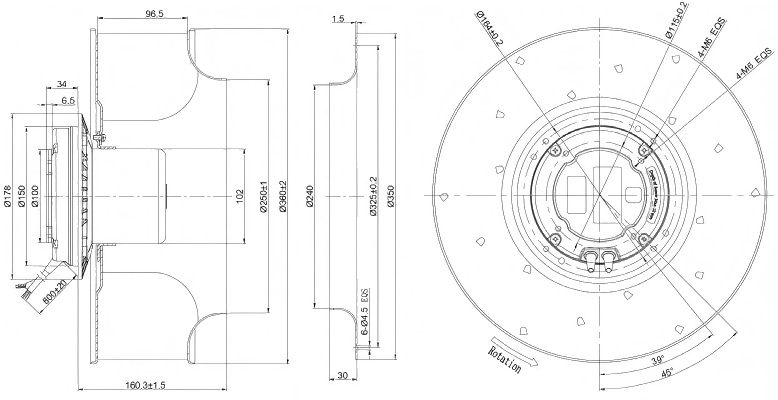

Mechanical Dimensions: mm

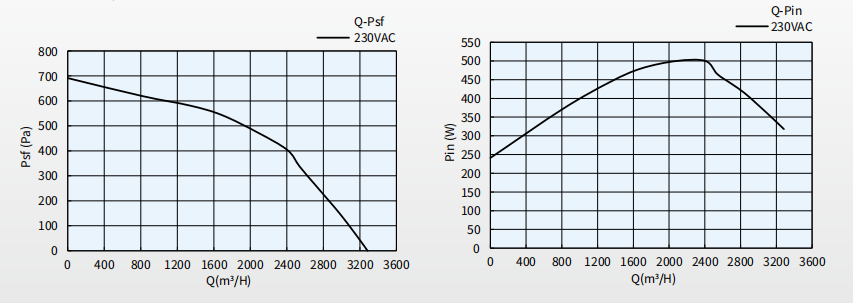

Fan Performance Curve
