Φ400 EC Backward-curved Centrifugal Fan
Product Introduction
- Operates at 1530 r/min with 440W input for consistent airflow efficiency.
- Noise level of 75 dB(A) ensures comfortable acoustic performance at 1 meter distance.
- Functions reliably from -25°C to +60°C with 230V AC and 50/60Hz input.
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Performance Parameters
| Type | Rated Voltage (VAC) |
Frequency (Hz) |
Speed (r/min) |
Max Input Power (W) |
Noise(@1m) Sound Pressure Level (dB(A)) |
Amb Temp (℃) |
Wiring Method |
| BF400A-WE102C-3A09-01 | 230 | 50/60 | 1530 | 440 | 75 | -25～+60 | W1 |

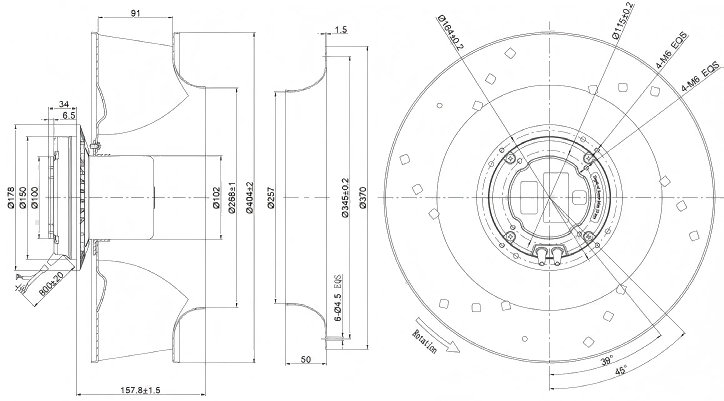

Mechanical Dimensions: mm

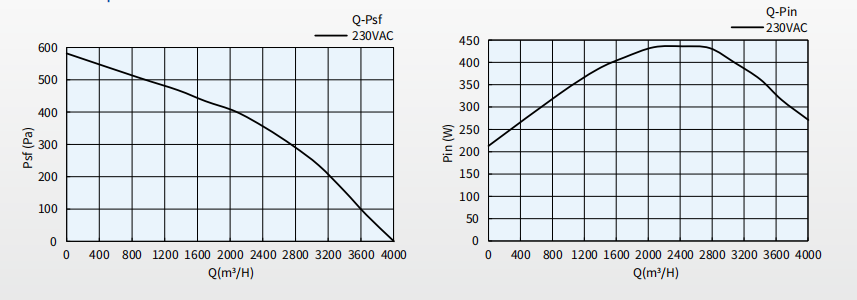

Fan Performance Curve
