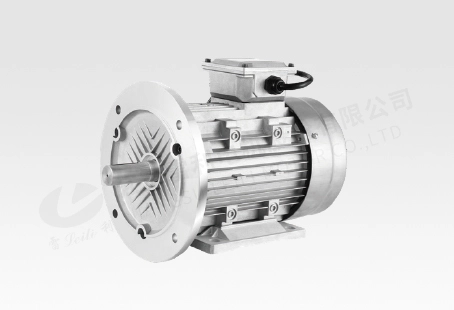

0.55KW Permanent Magnet Synchronous Motor

█ Typical Applications:
Industrial Equipment
Industrial Water Pump
Industrial Fan

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:



Inquiry PDF Export

Product Description

Performance Parameters

额定功率 RatedPower (kW)	额定转速 RatedSpeed (r/min)	额定转矩 RatedTorque (N·m)	机座号 Frame	型号 Model	额定电压 RatedVoltage (V)	额定电流 RatedCurrent （A）	频率 Frequency (Hz)	极数 Pole	效率 Efciency	功率因数 Power Factors	防护等级 Protection Level


0.55	1500	3.5	71M	ZB-71M3-1500	220	2	125	10	85.6	0.98	55
0.55	1500	3.5	71M	ZB-71M3-1500	380	1.1	125	10	85.6	0.98	55
0.55	1500	3.5	90S	ZB-90S1-1500	220	2	125	10	85.6	0.98	55
0.55	1500	3.5	90S	ZB-90S1-1500	380	1.1	125	10	85.6	0.98	55
0.55	3000	1.75	71M	ZB-71M2-3000	220	2.2	250	10	87.3	0.98	55
0.55	3000	1.75	71M	ZB-71M2-3000	380	1.3	250	10	87.3	0.98	55

Mechanical Dimensions:mm

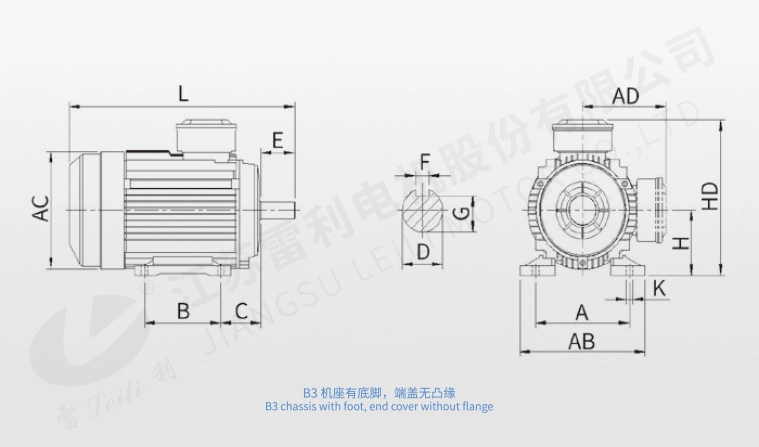

B3 chassis with foot, end cover without flange

机座号 Frame	安装尺寸InstallationSize(mm)									外形尺寸OutlineSize(mm)
机座号 Frame	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
71M	112	90	45	14	30	5	11	71	7	140	138	109	180	255
71M	112	90	45	19	40	6	15.5	71	7	140	138	109	180	265
90S	140	100	56	19	40	6	15.5	90	10	180	162	125	215	310
90S	140	100	56	24	50	8	20	90	10	180	162	125	215	320

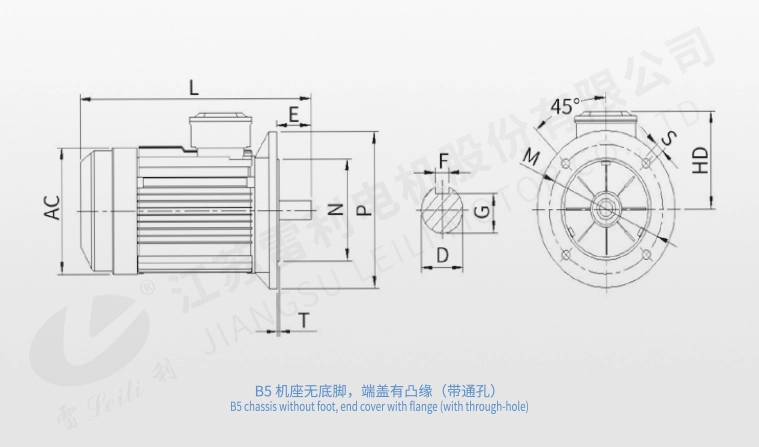

B5 chassis without foot, end cover with flange (with through-hole)

B5 chassis without foot end cover with flange (with through-hole)

机座号 Frame	安装尺寸InstallationSize(mm)									外形尺寸OutlineSize(mm)
机座号 Frame	D	E	F	G	M	N	P	S	T	AC	AD	L
71M	14	30	5	11	130	110	160	10	3	138	109	255
71M	19	40	6	15.5	130	110	160	10	3	138	109	265
90S	19	40	6	15.5	165	130	200	12	3	162	125	310
90S	24	50	8	20	165	130	200	12	3	162	125	320

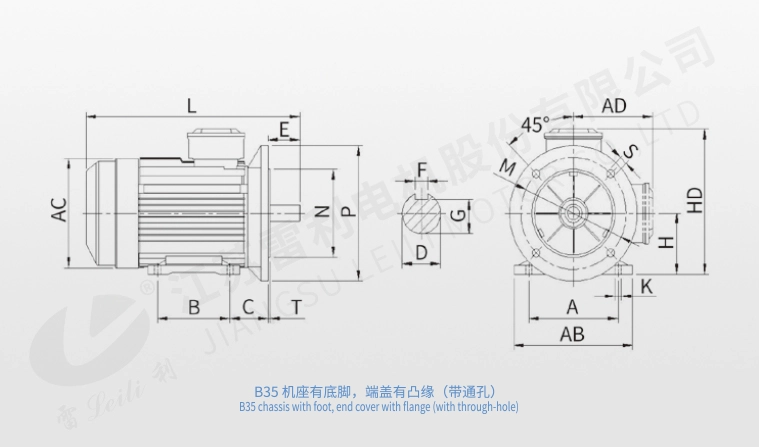

B35 chassis with foot, end cover with flange (with through-hole)

B35

机座号 Frame	安装尺寸InstallationSize(mm)														外形尺寸OutlineSize(mm)
机座号 Frame	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	AD	HD	L
71M	112	90	45	14	30	5	11	71	7	130	110	160	10	3	140	138	109	180	255
72M	112	90	45	19	40	6	15.5	71	7	130	110	160	10	3	140	138	109	180	265
90S	140	100	56	19	40	6	15.5	90	10	165	130	200	12	3	180	162	125	215	310
90S	140	100	56	24	50	8	20	90	10	165	130	200	12	3	180	162	125	215	320

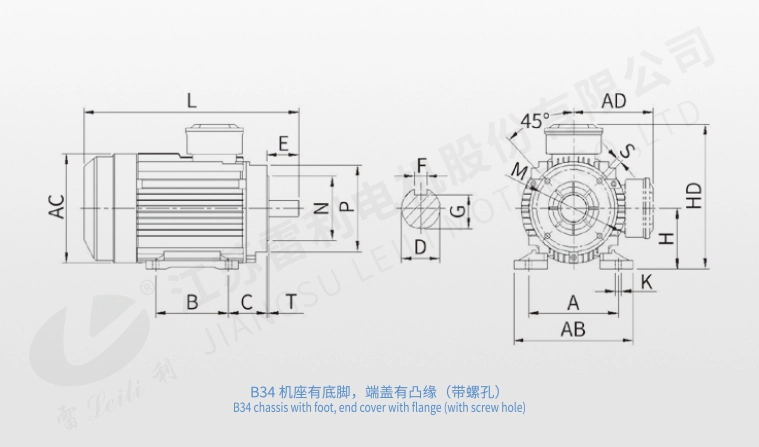

B34 chassis with foot, end cover with flange (with screw hole)

B34

机座号 Frame	安装尺寸InstallationSize(mm)														外形尺寸OutlineSize(mm)
机座号 Frame	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	AD	HD	L
71M	112	90	45	14	30	5	11	71	7	85	70	105	M6	3	140	138	109	180	255
71M	112	90	45	19	40	6	15.5	71	7	85	70	105	M6	3	140	138	109	180	265
90S	140	100	56	19	40	6	15.5	90	10	115	95	128	M8	3.5	180	162	125	215	310
90S	140	100	56	24	50	8	20	90	10	115	95	128	M9	3.5	180	162	125	215	320

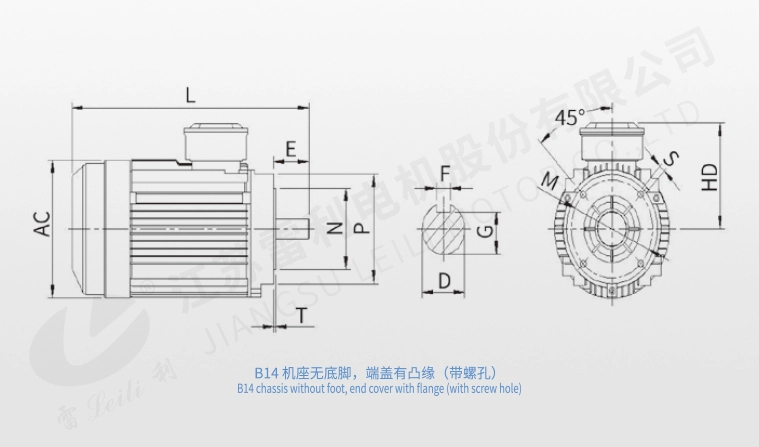

B14 chassis without foot, end cover with flange (with screw hole)

B14chassis without foot

机座号 Frame	安装尺寸InstallationSize(mm)									外形尺寸OutlineSize(mm)
机座号 Frame	D	E	F	G	M	N	P	S	T	AC	AD	L
71M	14	30	5	11	85	70	105	M6	3	138	109	255
71M	19	40	6	15.5	85	70	105	M7	3	138	109	265
90S	19	40	6	15.5	115	95	128	M8	3.5	162	125	310
90S	24	50	8	20	115	95	128	M8	3.5	162	125	320
