1.1KW Permanent Magnet Synchronous Motor

█ Typical Applications:
Industrial Equipment
Industrial Water Pump
Industrial Fan

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:



Inquiry PDF Export

Product Description

Performance Parameters

额定功率 RatedPower (kW)	额定转速 RatedSpeed (r/min)	额定转矩 RatedTorque (N·m)	机座号 Frame	型号 Model	额定电压 RatedVoltage (V)	额定电流 RatedCurrent （A）	频率 Frequency (Hz)	极数 Pole	效率 Efciency	功率因数 Power Factors	防护等级 Protection Level


1.1	1500	7	90S	ZB-90S-1500	220	4.2	125	10	87.4	0.98	55
1.1	1500	7	90S	ZB-90S-1500	380	2.4	125	10	87.4	0.98	55
1.1	3000	3.5	71M	ZB-71M4-3000	220	4.4	250	10	89.8	0.98	55
1.1	3000	3.5	71M	ZB-71M4-3000	380	2.6	250	10	89.8	0.98	55
1.1	3000	3.5	90S	ZB-90S2-3000	220	4.4	250	10	89.8	0.98	55
1.1	3000	3.5	90S	ZB-90S2-3000	380	2.6	250	10	89.8	0.98	55

Mechanical Dimensions:mm

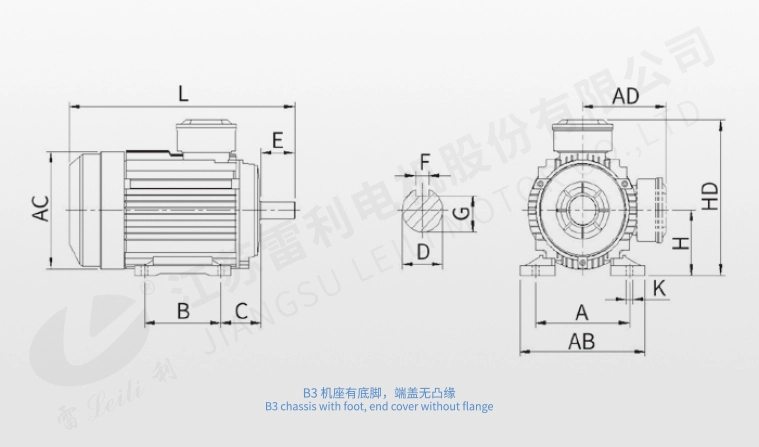

B3 chassis with foot, end cover without flange

机座号 Frame	安装尺寸InstallationSize(mm)									外形尺寸OutlineSize(mm)
机座号 Frame	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
71M	112	90	45	14	30	5	11	71	7	140	138	109	180	255
71M	112	90	45	19	40	6	15.5	71	7	140	138	109	180	265
90S	140	100	56	19	40	6	15.5	90	10	180	162	125	215	310
90S	140	100	56	24	50	8	20	90	10	180	162	125	215	320

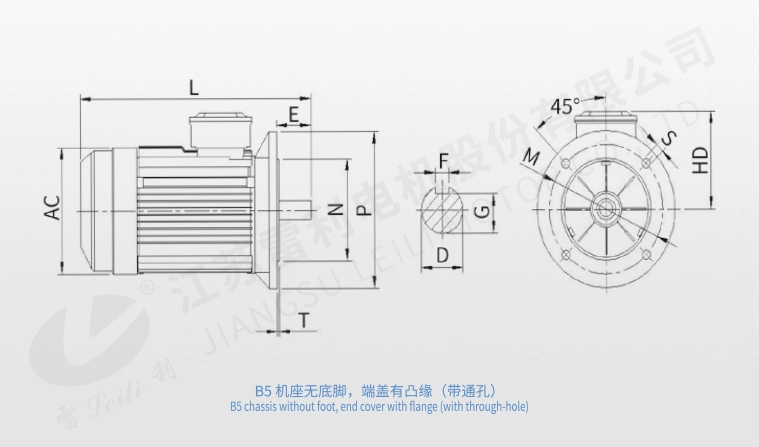

B5 chassis without foot, end cover with flange (with through-hole)

B5 chassis without foot end cover with flange (with through-hole)

机座号 Frame	安装尺寸InstallationSize(mm)									外形尺寸OutlineSize(mm)
机座号 Frame	D	E	F	G	M	N	P	S	T	AC	AD	L
71M	14	30	5	11	130	110	160	10	3	138	109	255
71M	19	40	6	15.5	130	110	160	10	3	138	109	265
90S	19	40	6	15.5	165	130	200	12	3	162	125	310
90S	24	50	8	20	165	130	200	12	3	162	125	320

B35 chassis with foot, end cover with flange (with through-hole)

B35

机座号 Frame	安装尺寸InstallationSize(mm)														外形尺寸OutlineSize(mm)
机座号 Frame	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	AD	HD	L
71M	112	90	45	14	30	5	11	71	7	130	110	160	10	3	140	138	109	180	255
72M	112	90	45	19	40	6	15.5	71	7	130	110	160	10	3	140	138	109	180	265
90S	140	100	56	19	40	6	15.5	90	10	165	130	200	12	3	180	162	125	215	310
90S	140	100	56	24	50	8	20	90	10	165	130	200	12	3	180	162	125	215	320

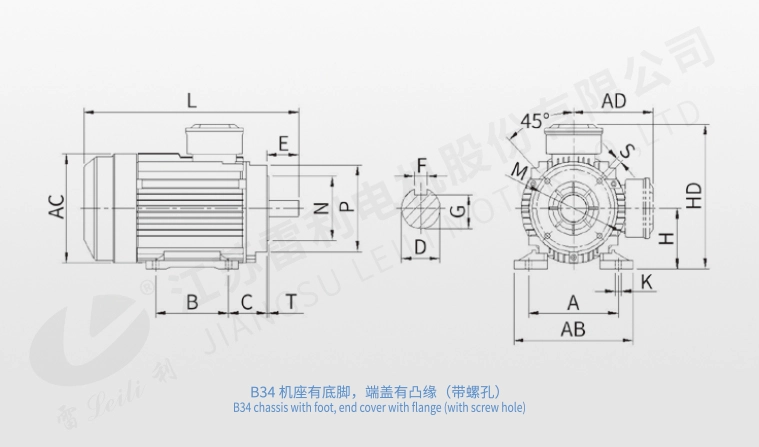

B34 chassis with foot, end cover with flange (with screw hole)

B34

机座号 Frame	安装尺寸InstallationSize(mm)														外形尺寸OutlineSize(mm)
机座号 Frame	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	AD	HD	L
71M	112	90	45	14	30	5	11	71	7	85	70	105	M6	3	140	138	109	180	255
71M	112	90	45	19	40	6	15.5	71	7	85	70	105	M6	3	140	138	109	180	265
90S	140	100	56	19	40	6	15.5	90	10	115	95	128	M8	3.5	180	162	125	215	310
90S	140	100	56	24	50	8	20	90	10	115	95	128	M9	3.5	180	162	125	215	320

B14 chassis without foot, end cover with flange (with screw hole)

B14chassis without foot

机座号 Frame	安装尺寸InstallationSize(mm)									外形尺寸OutlineSize(mm)
机座号 Frame	D	E	F	G	M	N	P	S	T	AC	AD	L
71M	14	30	5	11	85	70	105	M6	3	138	109	255
71M	19	40	6	15.5	85	70	105	M7	3	138	109	265
90S	19	40	6	15.5	115	95	128	M8	3.5	162	125	310
90S	24	50	8	20	115	95	128	M8	3.5	162	125	320
