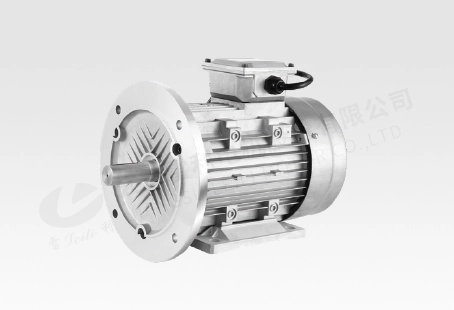

22KW Permanent Magnet Synchronous Motor

Performance Parameters

额定功率 RatedPower (kW)	额定转速 RatedSpeed (r/min)	额定转矩 RatedTorque (N·m)	机座号 Frame	型号 Model	额定电压 RatedVoltage (V)	额定电流 RatedCurrent （A）	频率 Frequency (Hz)	极数 Pole	效率 Efciency	功率因数 Power Factors	防护等级 Protection Level
22	1500	140.07	160L	ZB-160L2-1500	380	49	250	20	94.7	0.98	55
22	3000	70.03	160L	ZB-160L1-3000	380	48.3	500	20	95.9	0.98	55

Mechanical Dimensions:mm

B3 chassis with foot, end cover without flange

机座号 Frame	安装尺寸InstallationSize(mm)									外形尺寸OutlineSize(mm)
	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
160L	254	254	108	42	110	12	37	160	15	315	315	240	400	670
160L	254	254	108	48	110	14	42.5	160	15	315	315	240	400	670
160L	254	254	108	55	110	16	49	160	15	315	315	240	400	670

B5 chassis without foot, end cover with flange (with through-hole)

机座号 Frame	安装尺寸InstallationSize(mm)									外形尺寸OutlineSize(mm)
	D	E	F	G	M	N	P	S	T	AC	AD	L
160L	42	110	12	37	300	250	350	19	5	315	240	670
160L	48	110	14	42.5	300	250	350	19	5	315	240	670
160L	55	110	16	49	300	250	350	19	5	315	240	670

B35 chassis with foot, end cover with flange (with through-hole)

机座号 Frame	安装尺寸InstallationSize(mm)														外形尺寸OutlineSize(mm)
	A	B	C	D	E	F	G	H	K	M	N	P	S	T	AB	AC	AD	HD	L
160L	254	254	108	42	110	12	37	160	15	300	250	350	19	5	315	315	240	400	670
160L	254	254	108	48	110	14	42.5	160	15	300	250	350	19	5	315	315	240	400	670
160L	254	254	108	55	110	16	49	160	15	300	250	350	19	5	315	315	240	400	670
