28 Series Hybrid Stepping Motors

Typical Applications:
CCTV monitor
Medical appliance
OA financial equipment

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.
Availability:
Quantity:

PDF Export

Performance Parameters


型号
Model
电流
Current
(RmsA)
电阻
Resistance
(Ω)
电感
Inductance
(mH)
保持力矩
HoldingTorque
(N·m)
转子惯量
RotorInertia
(g·cm²)
机身长度
Motorlength
(mm)
重量
MotorsWeight
(g)
11H2033 1 2.1 1.2 0.06 9 33.5 110
11H2045 1 4.1 3.2 0.1 13 45 200
11H2052 1 4.7 3.9 0.14 18 52 280

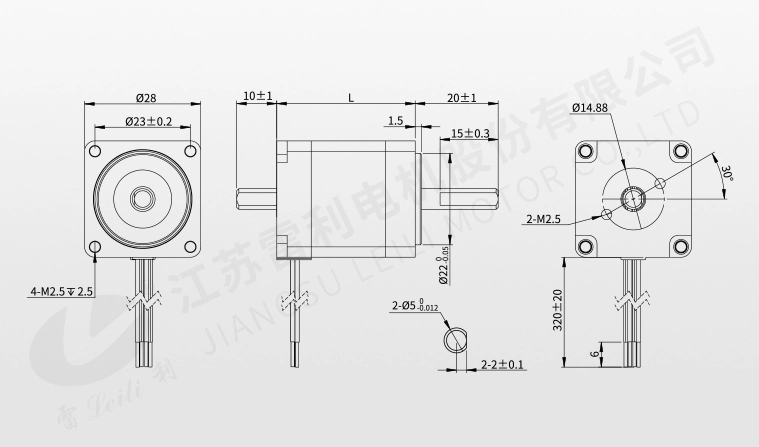

Mechanical Dimensions:mm

28-Series-Hybrid-Stepping-Motors of Mechanical Dimensionsmm


Frequency-torqu characteristics


Frequency-torqu characteristics of 28-Series-Hybrid-Stepping-Motors
