36ZYJ555 DC Brushed Gear Motor
Product Introduction
- Stable Voltage Operation: 36ZYJ555-2 runs on 24V, ensuring consistent performance across various applications.
- Efficient Speed Control: Delivers 215 RPM no-load speed and maintains 185 RPM under 8.6N·m load.
- Low Power Consumption: Operates with ≤0.6A no-load current and ≤4.0A under full load conditions.
Product Application
- Home coffee machine
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | RatedVoltage (VAC) |
No-load Current | No-load Speed (r/min) |
Load 8.6N·m | |
| 36ZYJ555-2 | 24V | ≤0.6A | 215±10% | Current (A)≤4.0A |
Load Speed (RPM)185±10% |

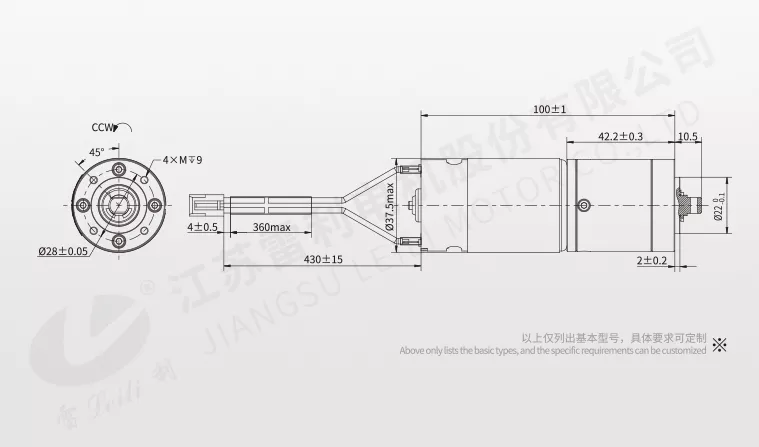

Mechanical Dimension: mm
