37ZYJ365 DC Brushed Gear Motor
Product Introduction
- Model: 37ZYJ365
- Optimized Efficiency: Provides up to 0.7W output with a balanced speed and torque ratio.
- Strong Torque Performance: Delivers up to 341 mN·m stall torque, ensuring reliable load handling.
Product Application
- Banking equipment
- Medical devices
- Intelligent sanitary
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Reduction | Voltage Ratio | No Load | At Maximum Efficiency | Stall | ||||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Output | Torque | Current | ||||
| V | V | r/min | A | r/min | A | mN·m | g·cm | W | mN·m | g·cm | A | ||
| 37ZYJ365-1 | 1/30 | 6~20 | 24 | 161 | 0.035 | 123 | 0.114 | 80 | 816 | 1 | 341 | 3478.2 | 0.373 |
| 37ZYJ365-2 | 1/30 | 12~30 | 12 | 120 | 0.07 | 92 | 0.229 | 77 | 785.4 | 0.7 | 330 | 3366 | 0.746 |
Mechanical Dimension: mm

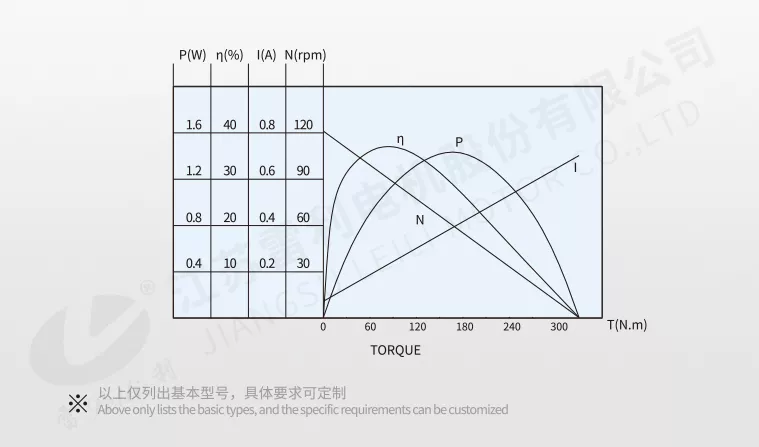

Motor Torque Curve
