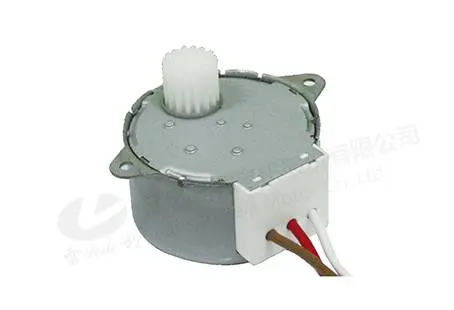

50SM27 Synchronous Motor

Product Introduction
Model:50SM27
Permanent magnet synchronous motor (PMSM) is a synchronous motor excited by a permanent magnet to generate a synchronous rotating magnetic field. The permanent magnet, as a rotor, generates a rotating magnetic field. The three-phase stator windings, under the action of the rotating magnetic field, react through the armature to induce a three-phase symmetrical current.
Application
Appliance: Refrigerator
Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.
Availability:
Quantity:

PDF Export

  • Home appliance

  • 50

  • ≥2-4  ≥4-6

  • 0-100  101-200  201+

  • ≤9-20  ≤20-90  ≤90-150  ≤150-180

  • ≤10-30  ≤30-50  ≤50-80  ≤80-100  ≤More than 100

Performance parameter



model rated voltage
(V)
freq
(Hz)
RPM
(RPM)
current
(mA)
power
(W)
output torque
(kgf,cm)
starting voltage
(V)
temp
(K)
noise
(A)
insulation level
50SM27 120 60 1.5 ≤40 ≤5 ≥4.5 ≤96 ≤65 ≤40 E
220/240 50 1.25 ≤20 ≤5 ≥5.5 ≤176 ≤65 ≤40 E
220 60 1.5 ≤30 ≤6 ≥6 ≤176 ≤65 ≤40 E


Mechanical dimension


50SM27 Synchronous Motor
