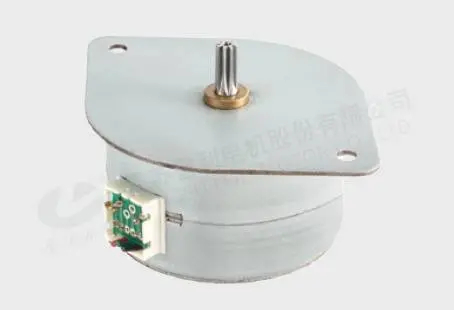

60SM38 Synchronous Motor

█ Product Introduction

Model:60SM38
Permanent magnet synchronous motor (PMSM) is a synchronous motor excited by a permanent magnet to generate a synchronous rotating magnetic field. The permanent magnet, as a rotor, generates a rotating magnetic field. The three-phase stator windings, under the action of the rotating magnetic field, react through the armature to induce a three-phase symmetrical current.
█ Application
Industry: valve control

█ Optional parts

Warm reminder:
The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact marketing@leiligroup.com.

Availability:

Quantity:



Inquiry PDF Export

Application:
Industry
Dimension Diameter (Synchronous Motor):
60
Output Torque (kgf,cm) Synchronous Motor:
≥0-2, ≥2-4, ≥4-6, ≥6
Rated Voltage（V）Synchronous Motor:
0-100, 101-200, 201+
Starting Voltage (V) Synchronous Motor:
≤9-20, ≤20-90, ≤90-150, ≤150-180
No-load Current（A）Synchronous Motor:
≤10-30, ≤30-50, ≤50-80, ≤80-100, ≤More than 100

Product Description

Performance parameter

Motor type	Voltage	Capacitance	Frequency	Rotational speed	Output speed	No-load power	No-load current	Electrical strength	Noise	Operating ambient temperature
Motor type	（VAC）	(μF)	(pps)	(RPM)	(mN·m)	(W)	(A)	Electrical strength	(A)	(℃)
60SM38	24	33	60	300	≥ 166.6	≤ 15	≤ 650	AC 500[V]	≤ 55	-10 ～ 50
60SM38	24	33	60	300	≥ 166.6	(60pps)	(60pps)	1 [min]	(Indistinct sound )	-10 ～ 50
