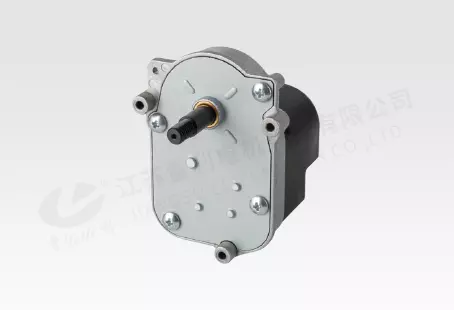

62ZYJ5412 DC Brushed Gear Motor
Product Introduction
- Stable Performance: Operates at 115V with a no-load speed of 32±10% RPM.
- Energy Efficient: Low power consumption with a no-load current of ≤0.2A.
- Reliable Load Handling: Delivers steady performance at 18±1 RPM under 8.6N·m torque.
Product Application
- Refrigerator
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | Rated Voltage (VAC) |
No-load Current | No-load Speed (r/min) |
Load 8.6N·m | |
| 62ZYJ5412-1 | 115V | ≤0.2A | 32±10% | Current (A)≤0.8A |
Load Speed (RPM)18±1 |

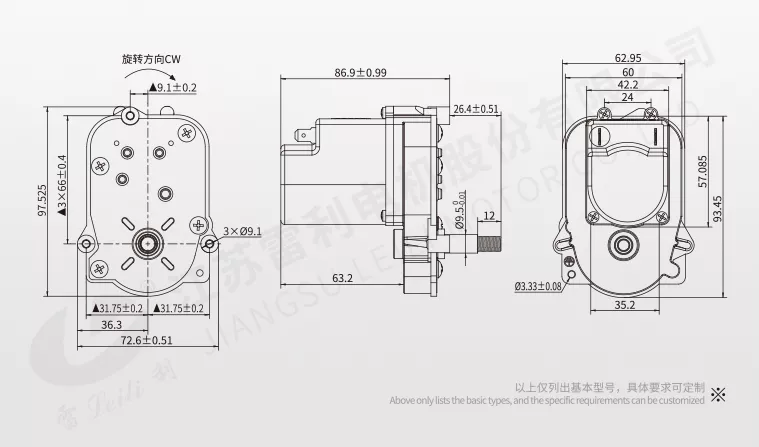

Mechanical Dimension: mm
