82WS Outer Rotor Brushless DC Motor
Product Introduction
- The 82WS motor operates at 1350±100 rpm with a no-load current of 0.2±0.02A (cold state).
- It delivers a rated torque of 1200 mN.m at 1350±100 rpm with 1.7±0.2A rated current.
- Designed for 220VAC, it ensures stable performance across various applications with precise speed control.
Product Application
- Water Purifier
- Warm Reminder:
- The following product parameters are standard products, our company can do product design, development and production according to the special needs of customers. For more information, please contact [email protected]
Product Parameters
| Model | No-load Current (A) |
No-load Speed (rpm) |
Rated Current IAC(A) |
Rated Speed (RPM) |
Rated Torque （mN.m） |
Rated Voltage |
| 82WS | 0.2±0.02 | 1350±100 | 1.7±0.2 | 1350±100 | 1200 | 220VAC |
| Coldstate |

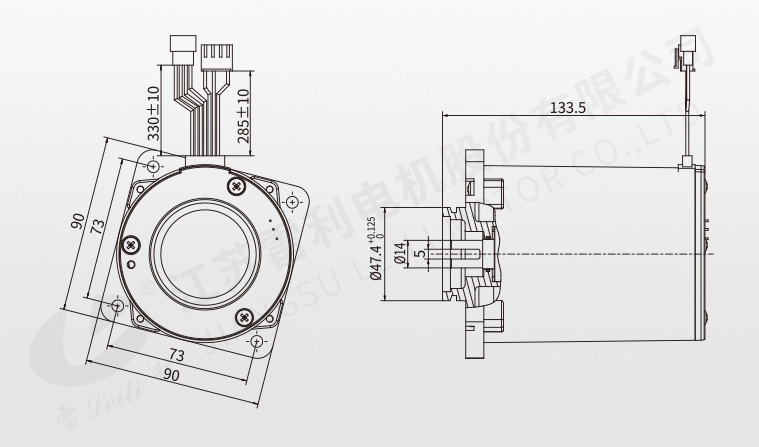

Mechanical Dimensions: mm
